Connector End View - X541 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

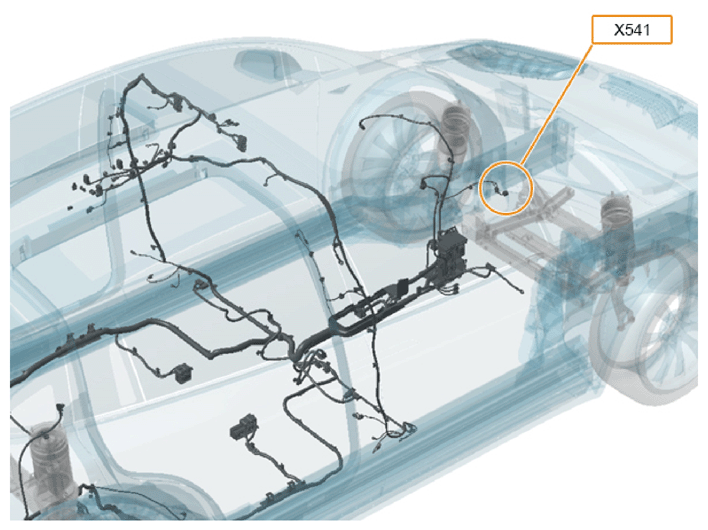

Fig 1: Connector Component Location - X541 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219583Courtesy of TESLA, INC.

Connector Detail: yazaki_7123-1360

Fig 2: Connector End View - X541 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219584Courtesy of TESLA, INC.

Gender: UNSPEC

Color: Natural

Cav Col Gauge
1 BK 0.35
2 RD/VT 0.35
3 GN 0.35
4 GN 0.35
5 RD 0.35
