Connector End View - X540 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

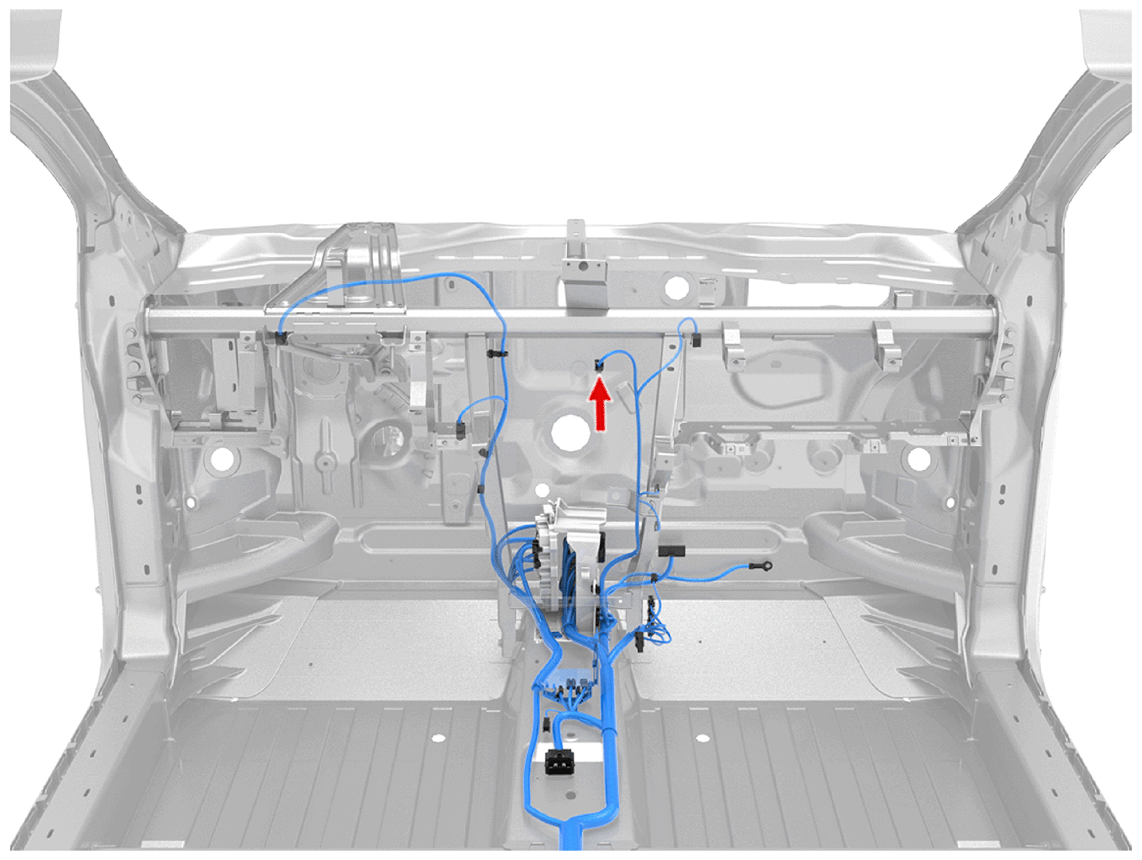

Fig 1: Connector Component Location - X540 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219581Courtesy of TESLA, INC.

Connector Detail: amp_1318386-1

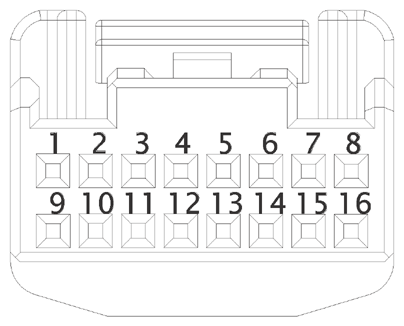

Fig 2: Connector End View - X540 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219582Courtesy of TESLA, INC.

Gender:

Color: WH

Cav Col Gauge
8 RD/VT 0.35
9 BK 0.35
10 BK 0.35
11 VT/WH 0.35
12 VT 0.35
16 VT 0.35
