Connector End View - X537 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

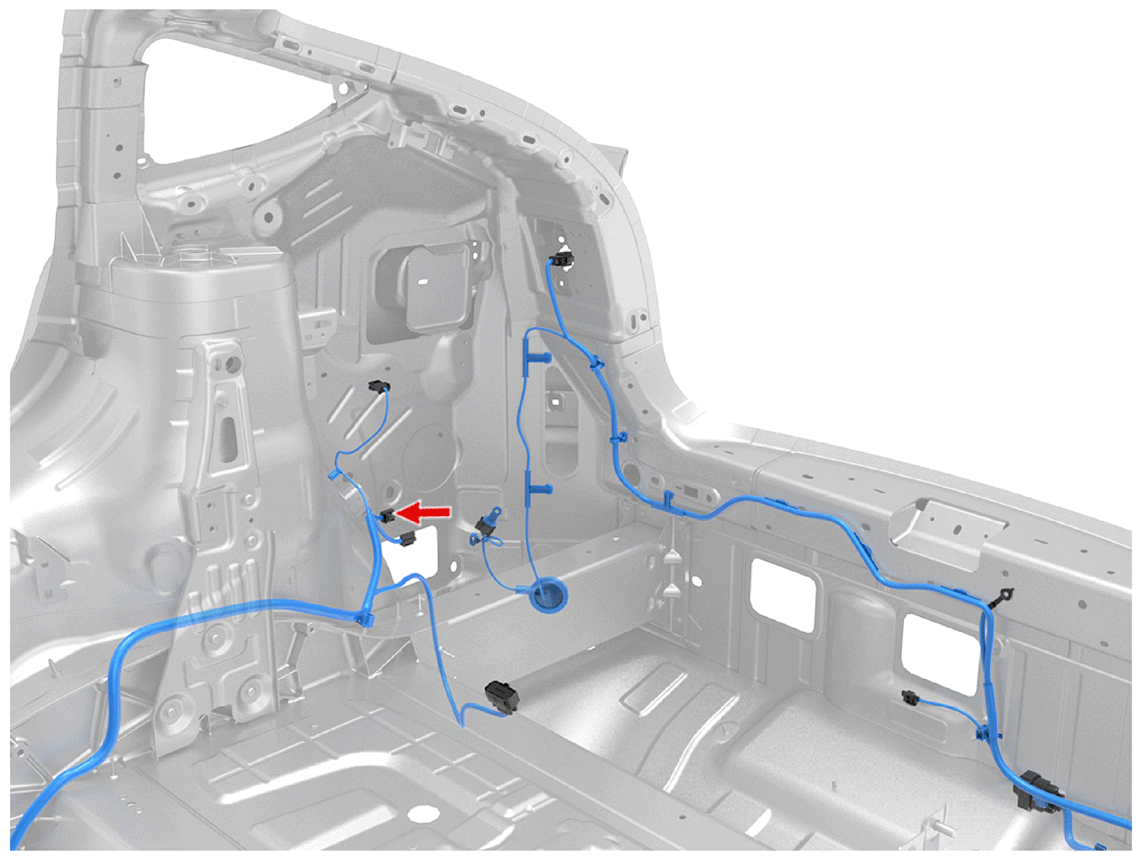

Fig 1: Connector Component Location - X537 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: sumitomo_6098-3917

Fig 2: Connector End View - X537 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: WH

Cav	Col	Gauge
1	BK	0.13
2	WH	0.13
3	BN	0.13
4	GY	0.13
5	GN	0.13
6	RD	0.13
7	RD/WH	0.5
8	BU/WH	0.35
9	BU	0.35
10	YE	0.5
11	GN	0.5
12	BK	0.35
13	GY	0.35
14	WH	0.35
