Connector End View - X515 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

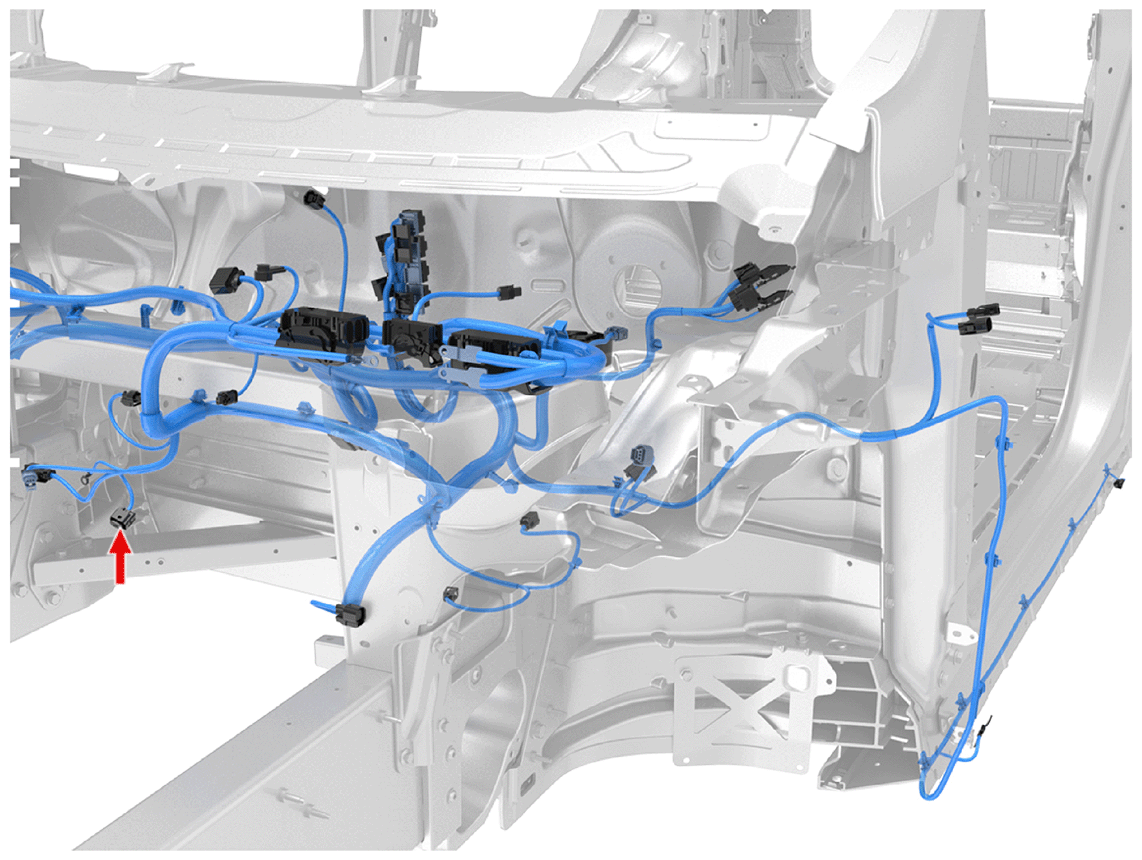

Fig 1: Connector Component Location - X515 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219549Courtesy of TESLA, INC.

Connector Detail: amp_1-967640-1

Fig 2: Connector End View - X515 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219550Courtesy of TESLA, INC.

Gender:

Color: BK

Cav Col Gauge
1 BK/WH 0.35
2 VT/WH 0.35
3 BU/WH 0.35
4 RD/WH 0.35
