Connector End View - X511 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

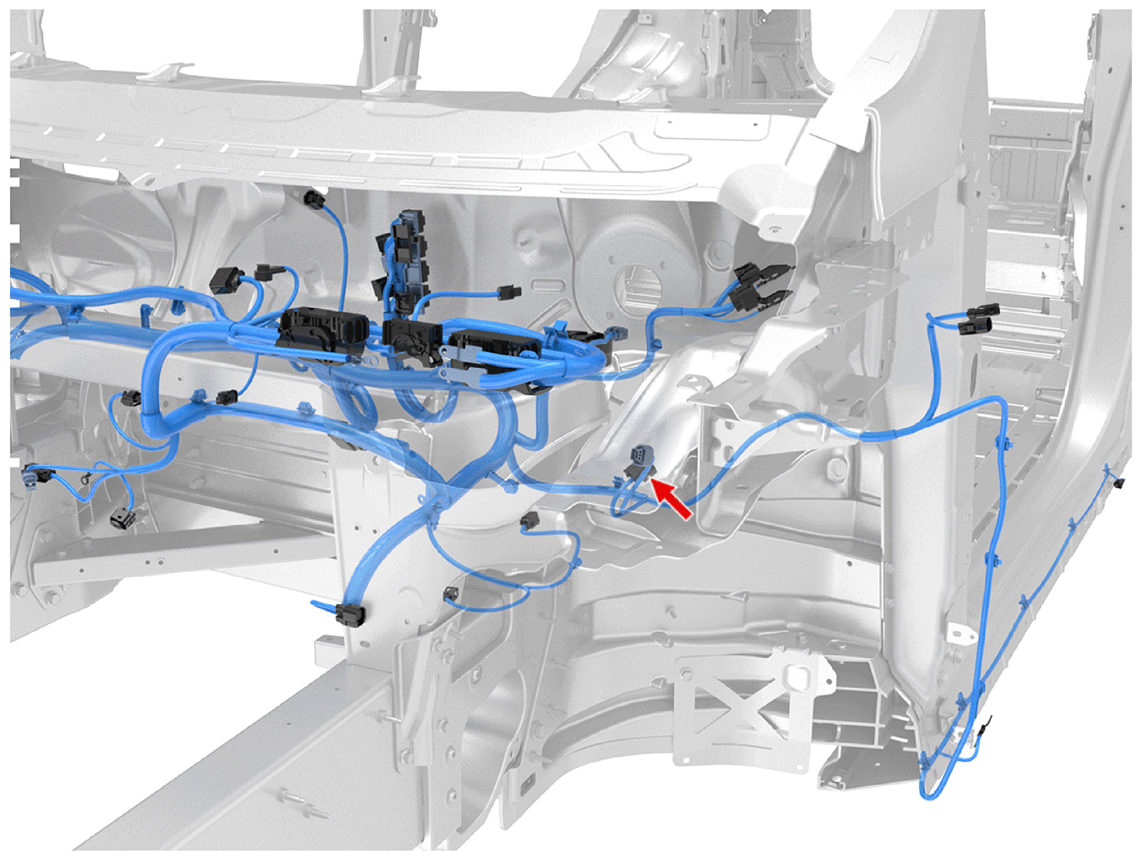

Fig 1: Connector Component Location - X511 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219543Courtesy of TESLA, INC.

Connector Detail: sumitomo_6189-1105

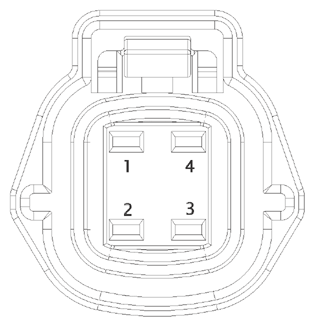

Fig 2: Connector End View - X511 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219544Courtesy of TESLA, INC.

Gender:

Color: Gray

Cav Col Gauge
1 RD/WH 1
2 BK 1
3 BN/WH 0.35
4 BN 0.35
