Connector End View - X503 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

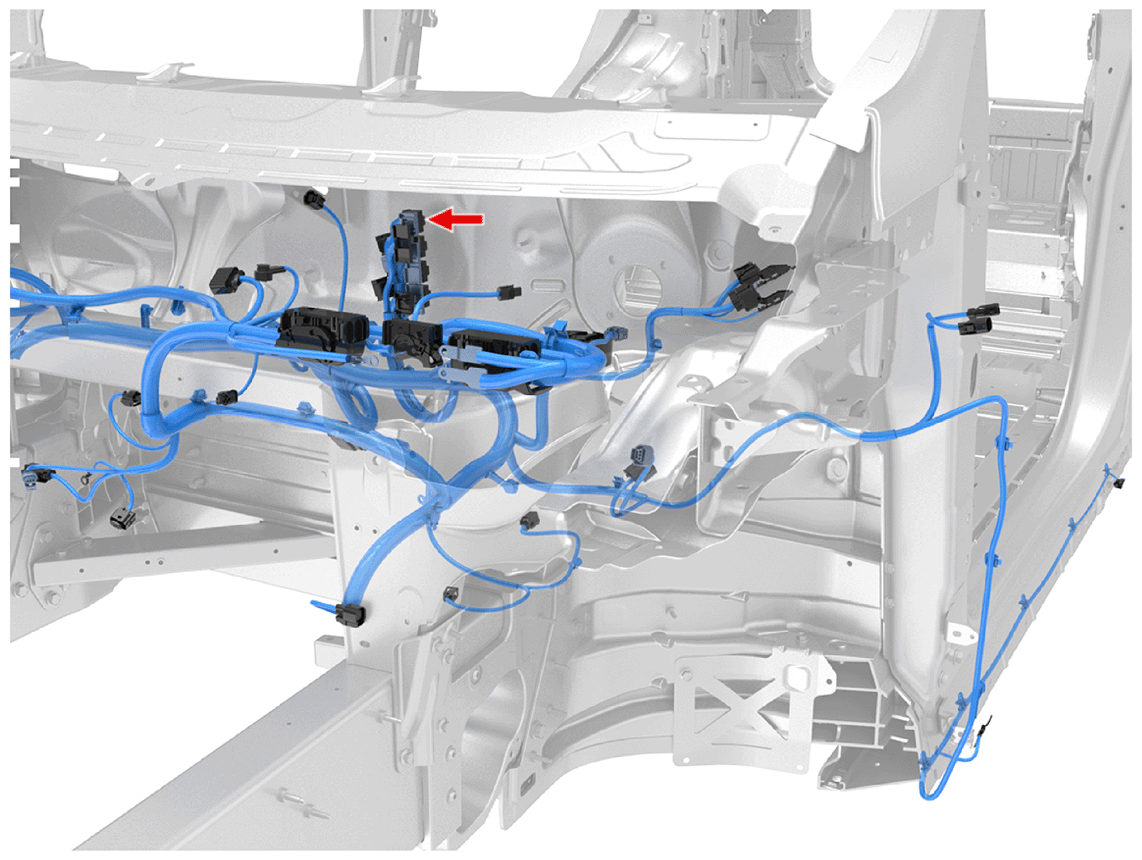

Fig 1: Connector Component Location - X503 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_34729-0203

Fig 2: Connector End View - X503 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: LightGreen

Cav	Col	Gauge
1	BU/WH	0.35
5	GY	0.35
6	BU/WH	0.75
7	GY/WH	0.35
8	BU/WH	0.35
9	GN/WH	0.5
10	WH	0.35
11	BU/WH	0.35
15	BN	0.35
16	BK/GY	0.75
17	BN/WH	0.35
19	BK/WH	0.5
20	BK	0.35
