Connector End View - X502 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

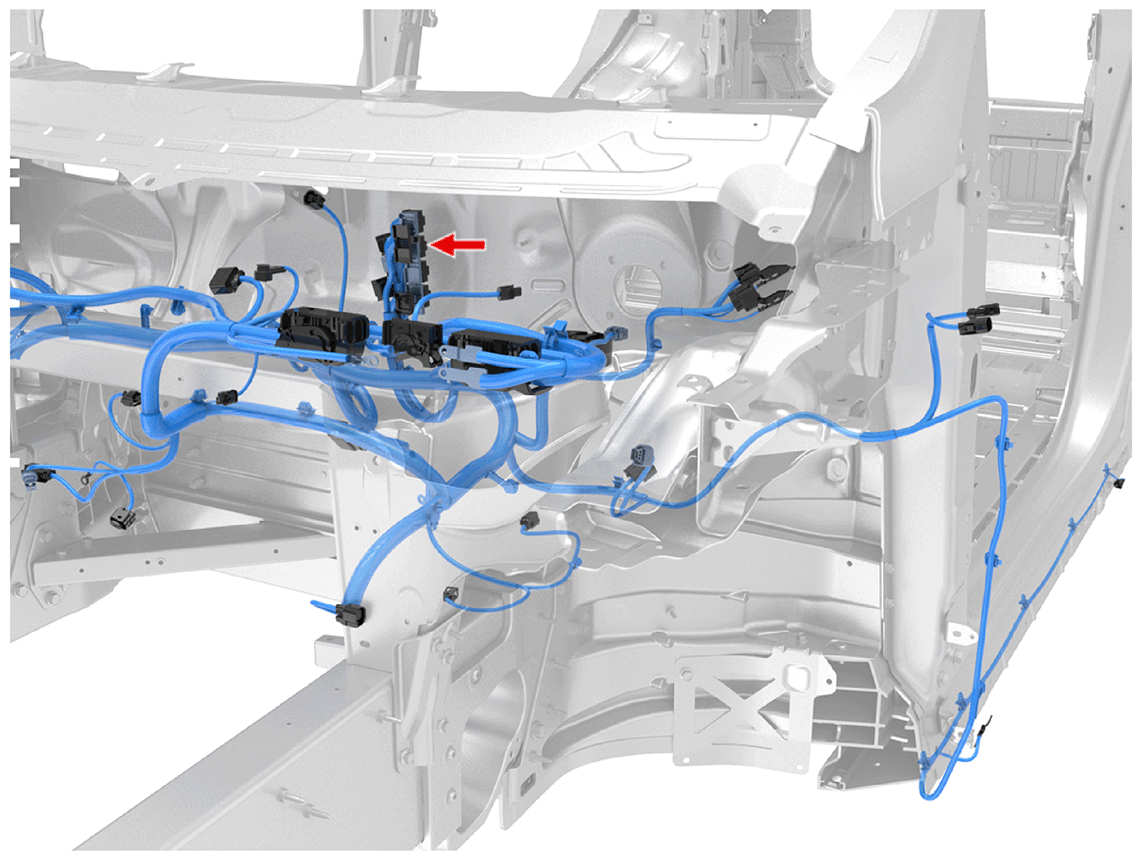

Fig 1: Connector Component Location - X502 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: molex_34729-0202

Fig 2: Connector End View - X502 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: Brown

Cav	Col	Gauge
2	BU	0.5
3	GN/WH	0.35
4	GN/WH	0.35
5	RD/WH	0.35
7	BU	0.5
8	RD	0.35
9	BU/WH	0.5
10	RD	0.35
12	RD	0.5
14	VT/WH	0.35
15	BK/WH	0.35
17	GN	0.5
18	GN	0.35
19	GN/WH	0.5
