Connector End View - X486 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

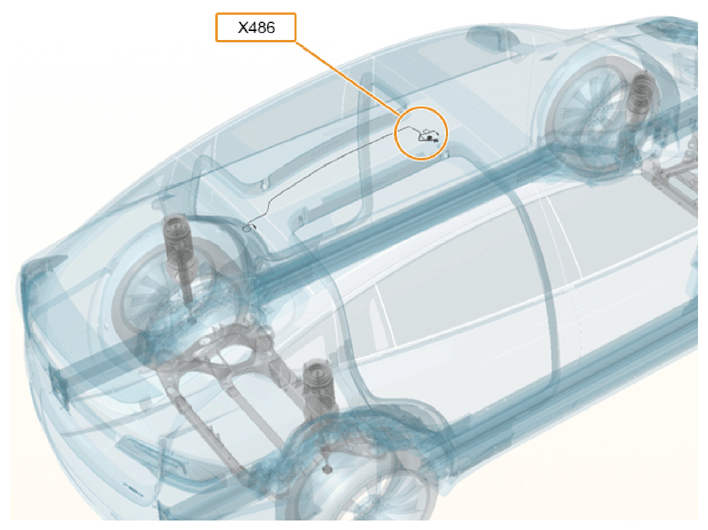

Fig 1: Connector Component Location - X486 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219513Courtesy of TESLA, INC.

Connector Detail: jae_mx34e08sf1

Fig 2: Connector End View - X486 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219514Courtesy of TESLA, INC.

Gender: UNSPEC

Color: GY

Cav Col Gauge
1 BK 0.35
2 GN 0.35
4 RD/BU 0.35
