Connector End View - X485 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

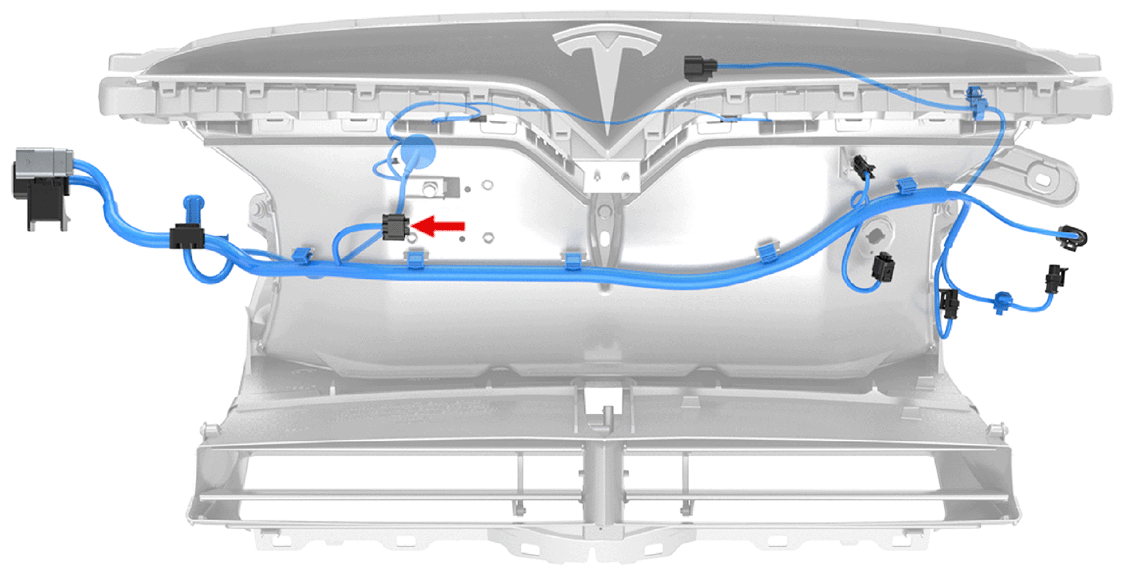

Fig 1: Connector Component Location - X485 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: amp_1-967640-1

Fig 2: Connector End View - X485 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
2	GN	0.5
3	BK	0.35
4	VT/WH	0.5
