Connector End View - X482 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

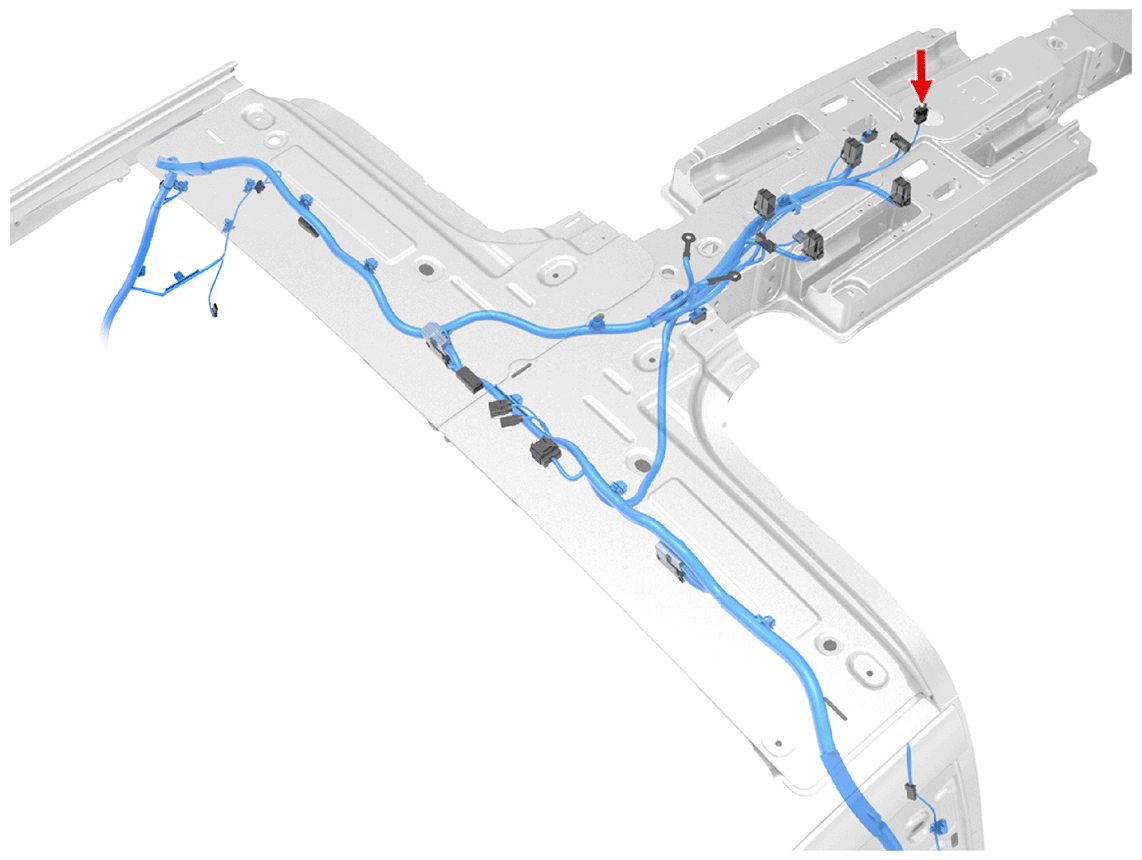

Fig 1: Connector Component Location - X482 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219509Courtesy of TESLA, INC.

Connector Detail: hirschmann_872-858-546

Fig 2: Connector End View - X482 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219510Courtesy of TESLA, INC.

Gender: UNSPEC

Color: Curry

Cav Col Gauge
1 BU/WH 0.35
2 VT 0.35
3 BK/GY 0.35
