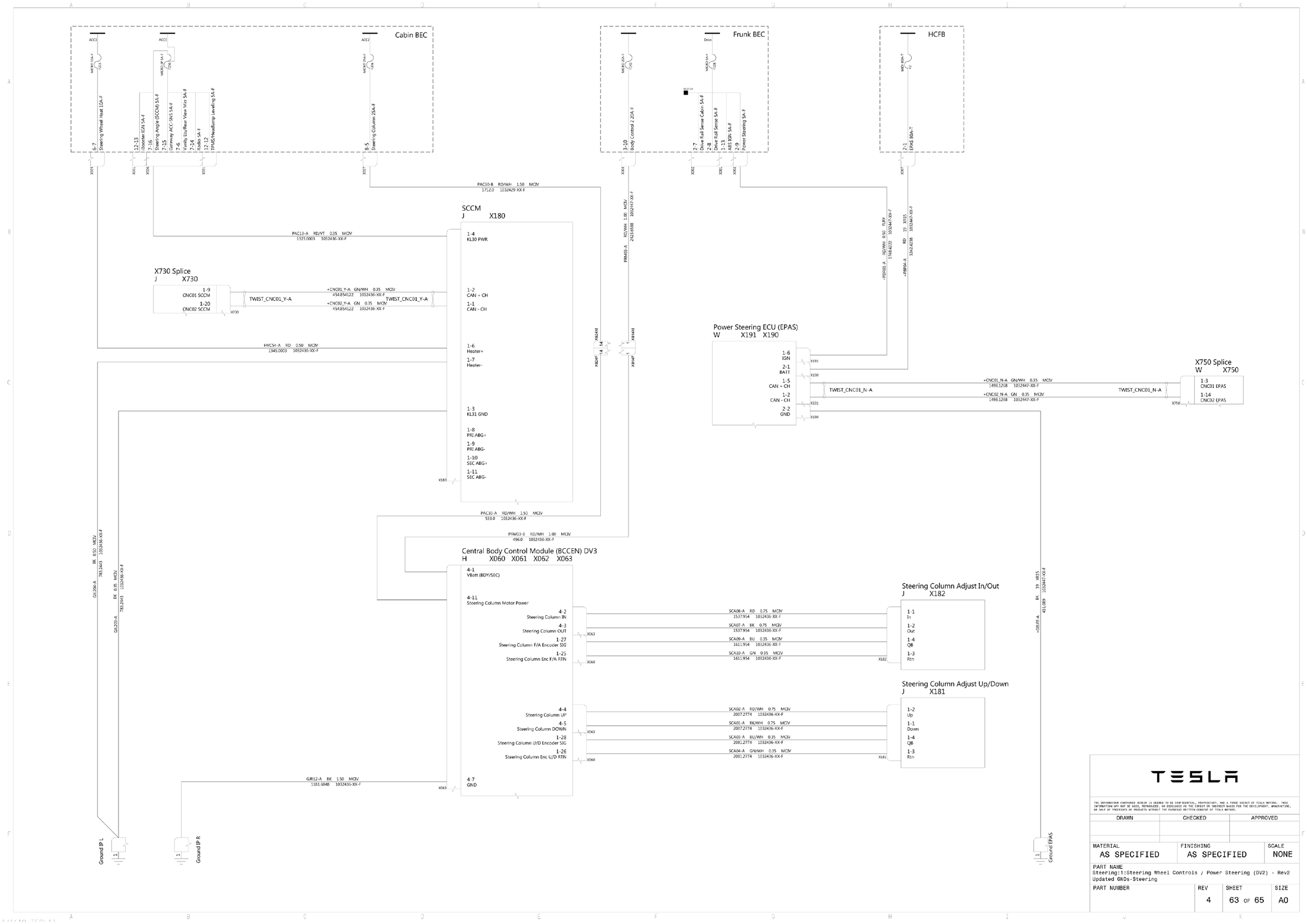

Steering Wheel Controls/Power Steering - Wiring Diagram [4/25/2016 (North America) - 10/16/2016 | 3/29/2016 (Europe APAC) - 10/16/2016]

G15288563Courtesy of TESLA, INC.
