Table Of Contents And Legend - Wiring Diagram [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
| Page | DESCRIPTION |
|---|---|
| 1 | Table of Contents and Legend |
| 2 | 12V Outlets/USB Power |
| 3 | Air Suspension |
| 4 | Audio, Base & Premium 1/2 - MCU |
| 5 | Audio, Base & Premium 2/2 - Booster |
| 6 | CAN - BFT |
| 7 | CAN - Body |
| 8 | CAN - Chassis |
| 9 | CAN - Falcon Sensing |
| 10 | CAN - Powertrain |
| 11 | CAN - Thermal |
| 12 | Chassis (Braking and Stability) 1/2 - Braking and Stability |
| 13 | Chassis (Braking and Stability) 2/2 - Brake Switch, Park Brake |
| 14 | Diagnostics |
| 15 | Door Controls - Front Actuators |
| 16 | Door Controls - Front Left Side |
| 17 | Door Controls - Rear Left Side 1/2 |
| 18 | Door Controls - Rear Left Side 2/2 |
| 19 | Door Controls - Front Right Side |
| 20 | Door Controls - Rear Right Side 1/2 |
| 21 | Door Controls - Rear Right Side 2/2 |
| 22 | Drive Inverter |
| 23 | Driver Assistance |
| 24 | Energy System - Charger Logic Connection |
| 25 | Exterior Illumination Front |
| 26 | Exterior Illumination Rear |
| 27 | Falcon Doors 1/5- Left Struts |
| 28 | Falcon Doors 2/5- Right Struts |
| 29 | Falcon Doors 3/5- Capacitive Sensors |
| 30 | Falcon Doors 4/5- Pinch Sensors |
| 31 | Falcon Doors 5/5- Ultrasonic Sensors |
| 32 | Front Seat Interface - LHS |
| 33 | Front Seat Interface - RHS |
| 34 | Grounding - A-Pillars |
| 35 | Grounding - Frunk |
| 36 | Grounding - IP and Center 1/2 - IP |
| 37 | Grounding - IP and Center 2/2 - Center |
| 38 | Grounding - Rear Doors |
| 39 | Grounding - Rear |
| 40 | Hatch Front Actuators/Sensors |
| 41 | Hatch Rear Actuators/Sensors |
| 42 | High Voltage Interlock (HVIL) |
| 43 | Horn and Passive Entry/Security |
| 44 | HVAC - Cabin Climate and Rear Defrost |
| 45 | HVAC - Case Harness |
| 46 | HVAC - Powertrain Cooling - Components |
| 47 | HVAC - Powertrain Cooling - Coolant Cycle |
| 48 | Instrument Cluster/LIN |
| 49 | Interior Illumination Maplights |
| 50 | Mirrors - Center and Side |
| 51 | Parking Aids |
| 52 | Passive Restraints - IP and Front |
| 53 | Passive Restraints 1/2 |
| 54 | Passive Restraints 2/2 |
| 55 | Auxiliary Fuse Box |
| 56 | Cabin BEC 1/3 |
| 57 | Cabin BEC 2/3 |
| 58 | Cabin BEC 3/3 |
| 59 | Pre-Fuse Box |
| 60 | Frunk BEC 1/2 |
| 61 | Frunk BEC 2/2 |
| 62 | RF Cables |
| 63 | Steering Wheel Controls/Power Steering |
| 64 | Trailer Systems |
| 65 | Wiper/Washer and Rain Sensor |
| 66 | Frunk Fusebox Layout |
| 67 | Cabin Fusebox Layout |
| 68 | Auxiliary Fusebox Layout |
ABBREVIATIONS
| LF | Left Front |
| LR | Left Rear |
| LHS | Left-Hand Side |
| RF | Left-Hand Side |
| RF | Right Front |
| RR | Right Rear |
| RHS | Right-Hand Side |
HARNESS DESIGNATORS
| C | Center Console |
| D | LF Door Harness |
| DT | LF Door Trim Harness |
| F | Front Fascia Harness |
| G | Rear Fascia Harness |
| H | Instrument Panel Harness |
| J | Main Body Harness |
| K | Headliner |
| L | Front End Module |
| P | RF Door Harness |
| PT | RF Door Trim Harness |
| RL | LR Lower Door Harness |
| RO | RL Door Strut Harness |
| RT | RL Door Trim Harness |
| RU | RL Upper Door Harness |
| SL | RR Lower Door Harness |
| SO | RR Door Strut Harness |
| ST | RR Door Trim Harness |
| SU | RR Upper Door Harness |
| T | Tailgate Harness |
| V | Overhead Console Harness |
| W | Frunk Harness |
| X | Rear Subframe Harness |
WIRE COLOR DESIGNATORS
| BK | Black |
| BN | Brown |
| BU | Blue |
| GN | Green |
| GY | Gray |
| OG | Orange |
| RD | Red |
| VT | Violet (Purple) |
| WH | White |
| YE | Yellow |

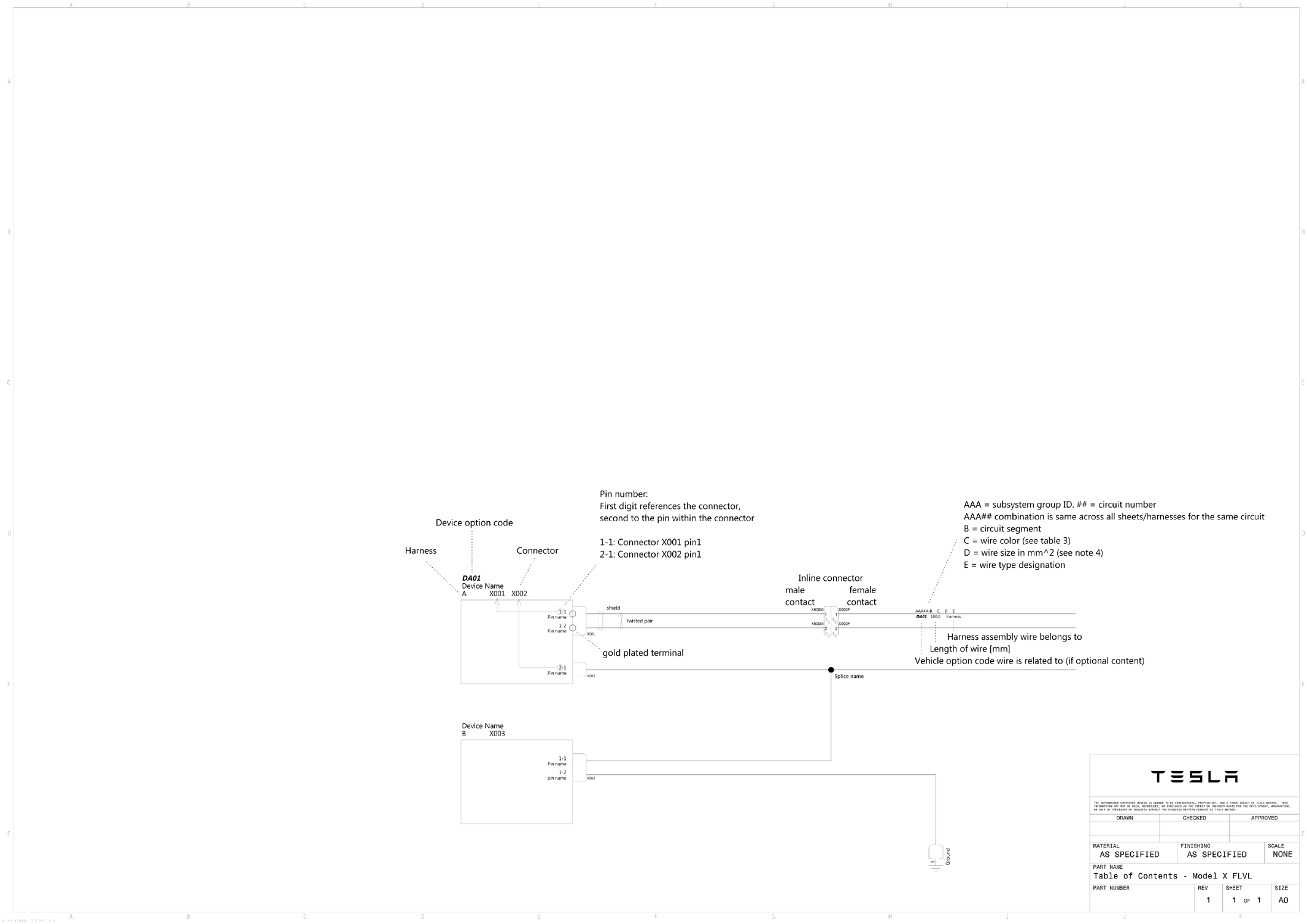

Striped wires are indicated by base-color code "/" then stripe color code.
"BK/WH" indicates a black wire with a white stripe.
WIRE TYPE DESIGNATORS
| FLRY | Thin wall 105C rated, regular stranded PVC insulates cables [FLRY-A] |
| FLRB | Thin wall 105C rated, bunched conductor PVC insulates cables [FLRY-B] |
| MCIV | Thin wall 105C rated, compressed conductor PVC (halogen free) insulated cables |
| XR15 | Thin wall 150C rated, cross-linked polyolefin, high flexible cable |
General Notes:
- Switches [Relays] are shown in their inactive [de-energized] state.
- Splices may be split across pages for visual clarity with respect to the function displayed on the particular page.
- Some connectors are split across multiple pages for clarity.
There is no overall reference in this document for the signals routed to a specific connector.
- Wire sizes are specified in mm^2 cross-sectional area (CSA) per SAE 1127/8
- Wire Specification: 60V, thin-wall PVC (ISO type or equivalent).
Default wire type to be rated 60VDC/25VAC and -40C to 105C operating temperature.
See DIN 13602 or ISO 6722 for detailed specifications.
- Unless otherwise specified at the device pins, terminal plating is to be Tin or Pre-Tin
TERMINAL PLATING
• GOLD TERMINAL NECESSARY
■ SILVER PLATING NECESSARY
- Inline connector gender specification is based on the terminal type.
Inline connectors with "M" suffix have male, tab or pin terminals
Inline connectors with "F" suffix have female, receptacle or socket terminals
