Wiring Diagrams ( - 4/25/2016 (North AMERICA) | - 3/29/2016 (EUROPE-APAC)) -- Model X
>>

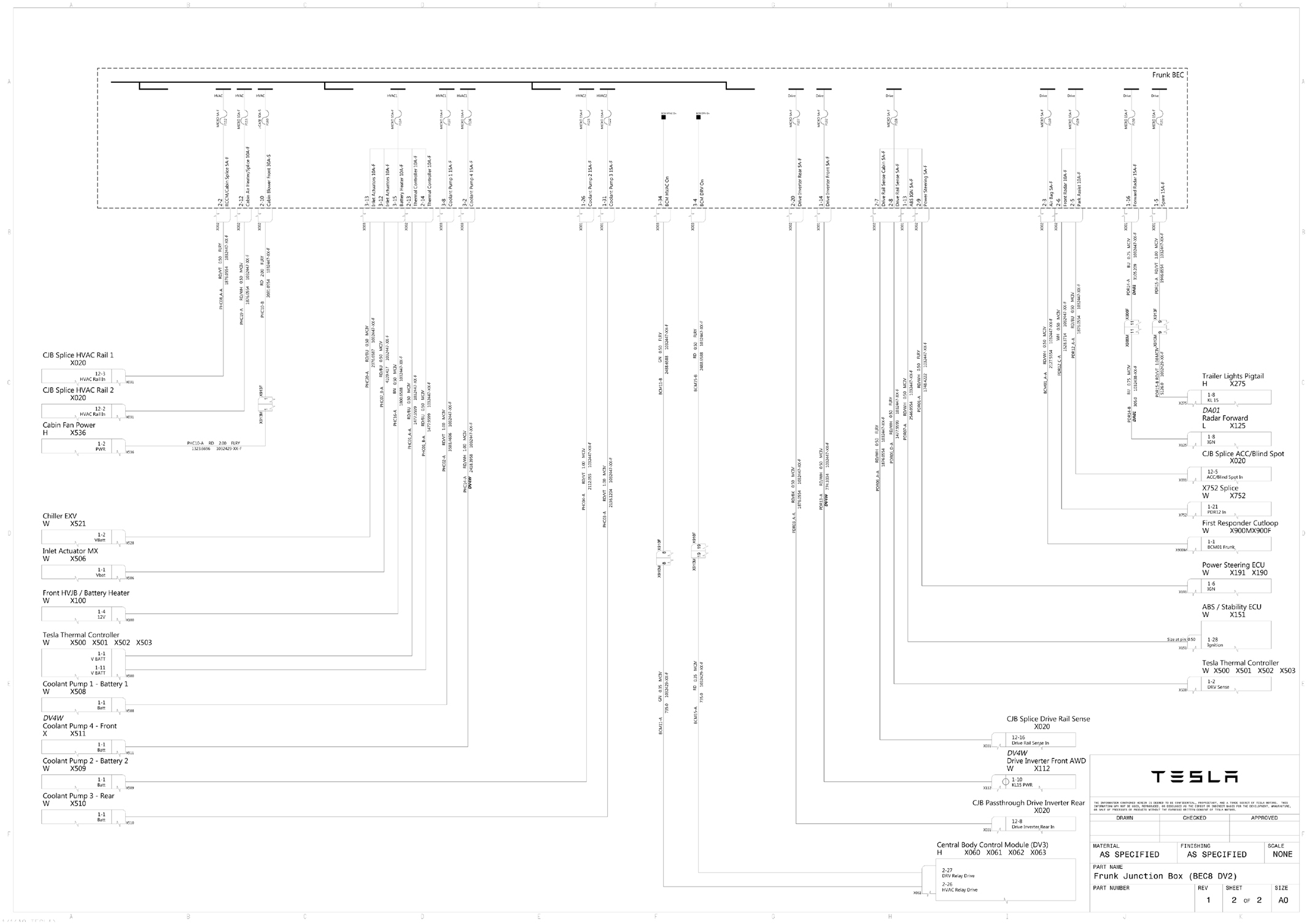

Frunk BEC 2/2 - Wiring Diagram [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
Frunk BEC 2/2 - Wiring Diagram [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
Courtesy of TESLA, INC.
Courtesy of TESLA, INC.
