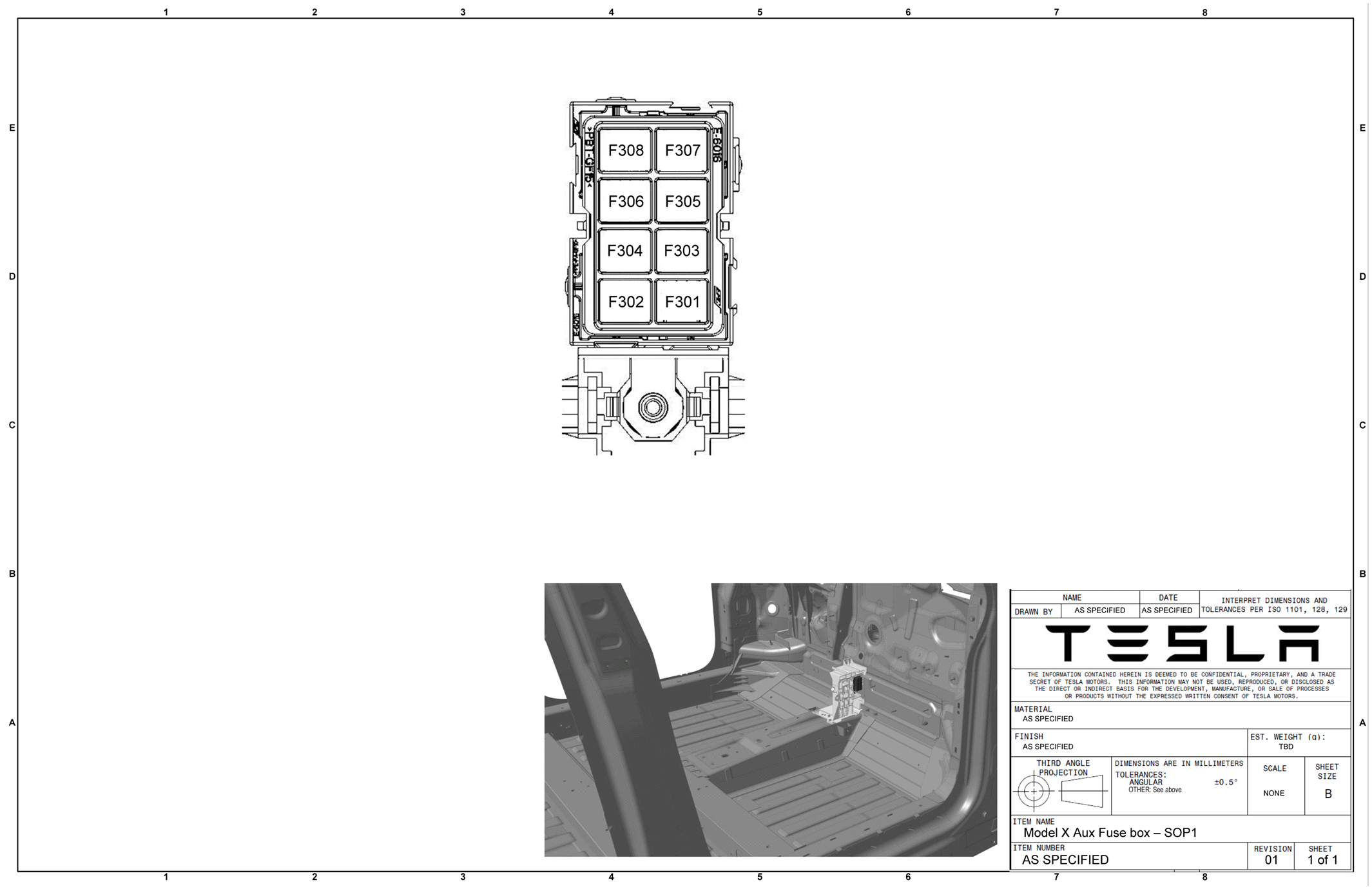

Auxiliary Fusebox Layout - Wiring Diagram [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
| Fuse | Value | Function |
|---|---|---|
| F301 | JCASE - 60A | Left Rear Door Actuators |
| F302 | JCASE - 60A | Right Rear Door Actuators |
| F303 | JCASE - 60A | Right Rear Door Actuators |
| F304 | JCASE - 60A | Left Rear Door Actuators |
| F305 | JCASE - 30A | Second Row Seat Power, Left |
| F306 | JCASE - 30A | Second Row Seat Power, Middle |
| F307 | JCASE - 30A | Second Row Seat Power, Right |
| F308 | JCASE - 30A | Trailer Brakes Power |
