Connector End View - X650 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

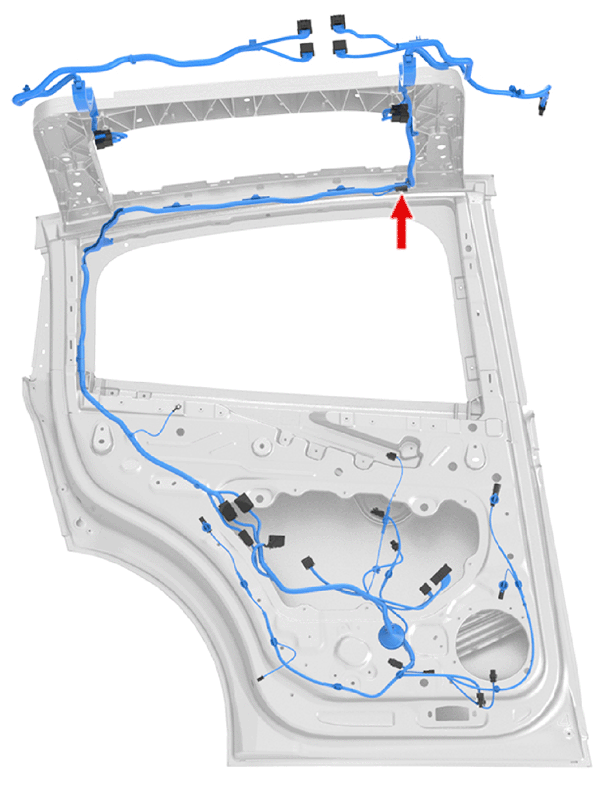

Fig 1: Connector Component Location - X650 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219647Courtesy of TESLA, INC.

Connector Detail: amp_1-1418778-1

Fig 2: Connector End View - X650 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]
G15219648Courtesy of TESLA, INC.

Gender: UNSPEC

Color: Brown

Cav Col Gauge
1 GN 0.35
2 GY/WH 0.35
3 GY 0.35
4 BK/WH 0.35
