Connector End View - X560 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Location:

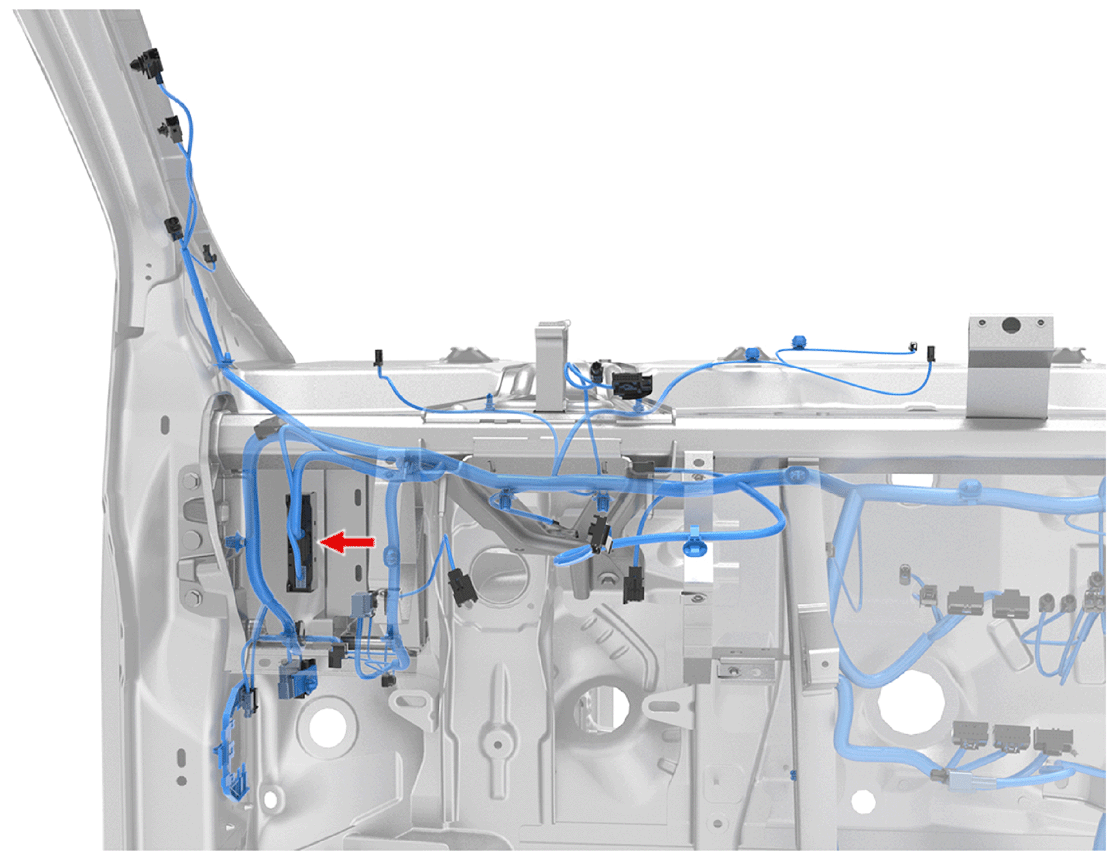

Fig 1: Connector Component Location - X560 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Connector Detail: amp_1534180-1

Fig 2: Connector End View - X560 [ - 4/25/2016 (North America) | - 3/29/2016 (Europe-APAC)]

Courtesy of TESLA, INC.

Gender:

Color: BK

Cav	Col	Gauge
1	RD/WH	1.5
2	BK/WH	1.5
3	BU/WH	1
4	GN/WH	1
5	BU	1.5
6	BU	0.75
7	BK	0.75
11	BU	0.35
12	BN/WH	0.35
15	BU	1
16	GN	1
17	BK	1.5
18	VT	0.75
19	GN	0.75
