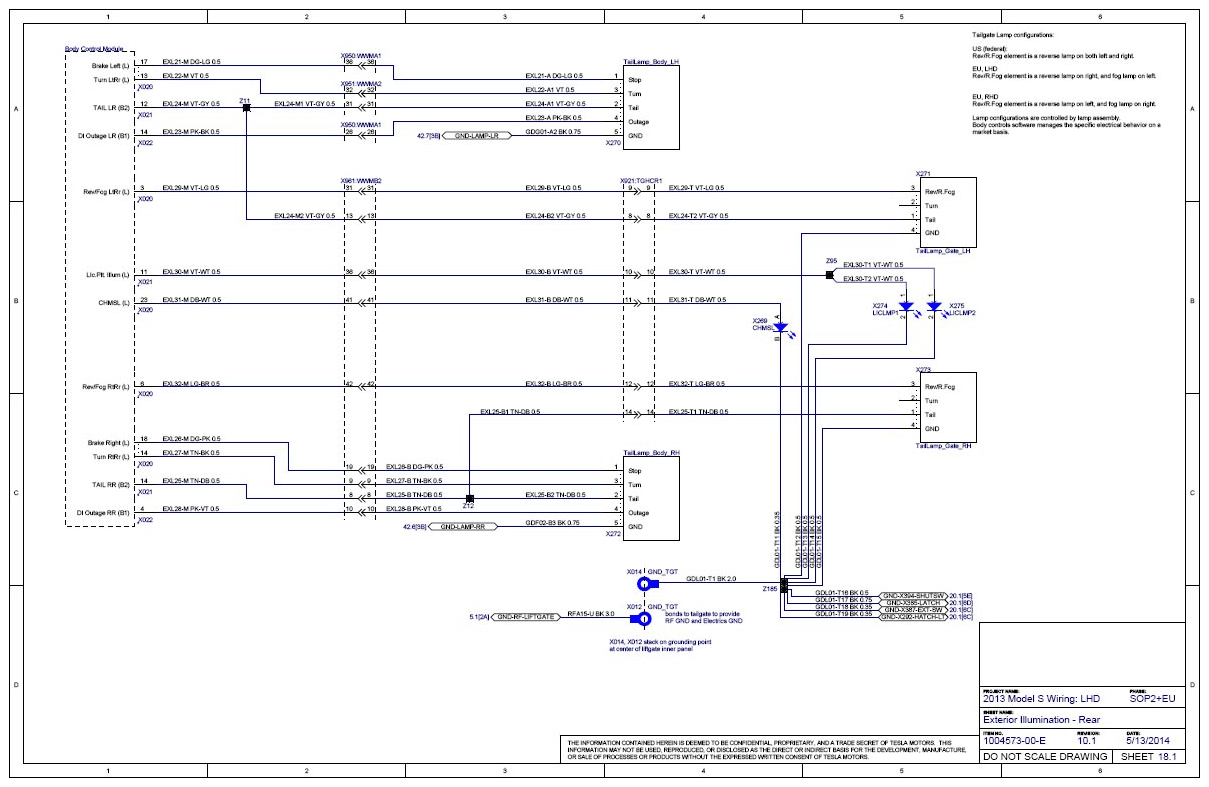

Exterior Illumination - Rear - Wiring Diagram [5/31/2013 - 1/6/2014]

G15031866

Courtesy of TESLA, INC.
