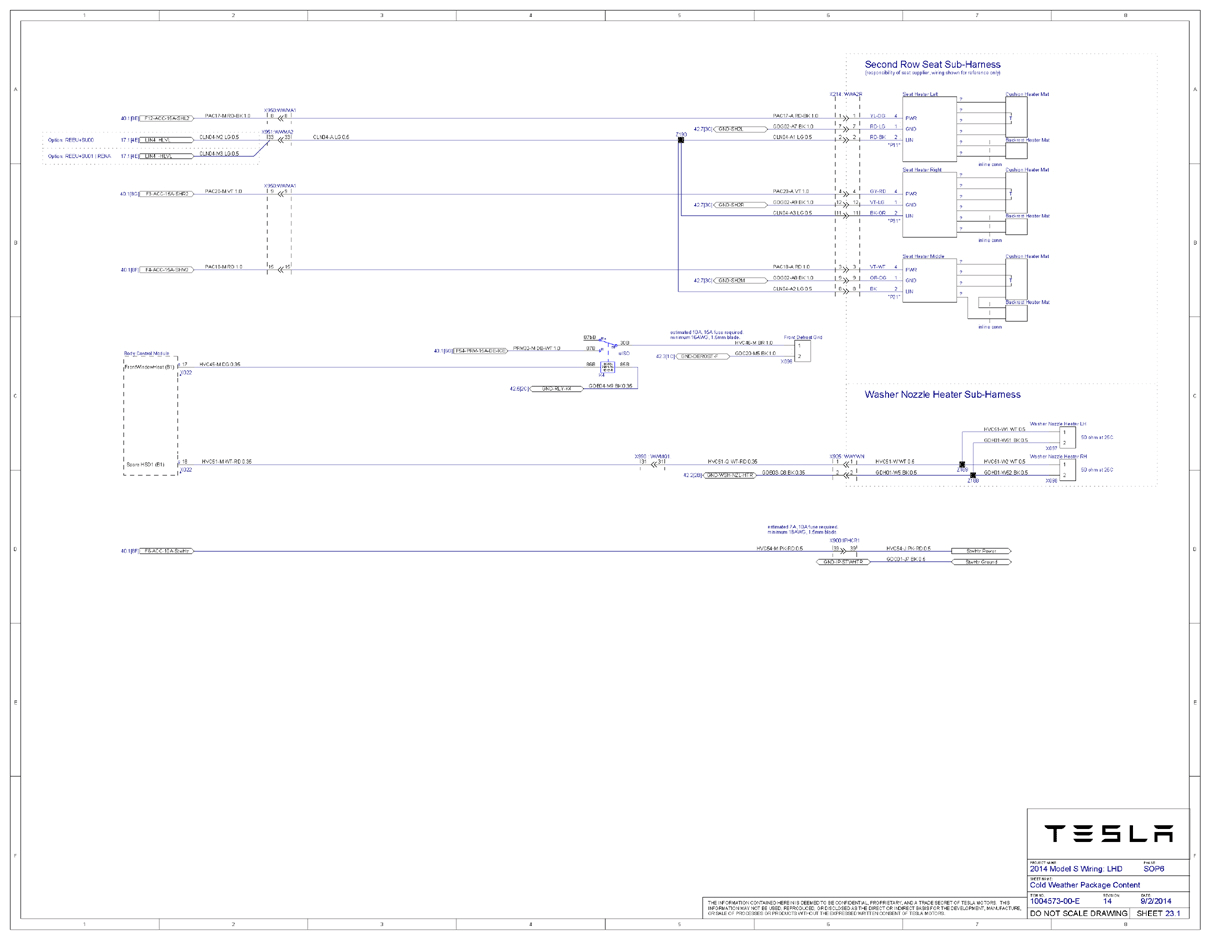

Cold Weather Package Content - Wiring Diagram [10/28/2014 - 9/16/2015 (Rear Wheel Drive)]

G15032066

Courtesy of TESLA, INC.
