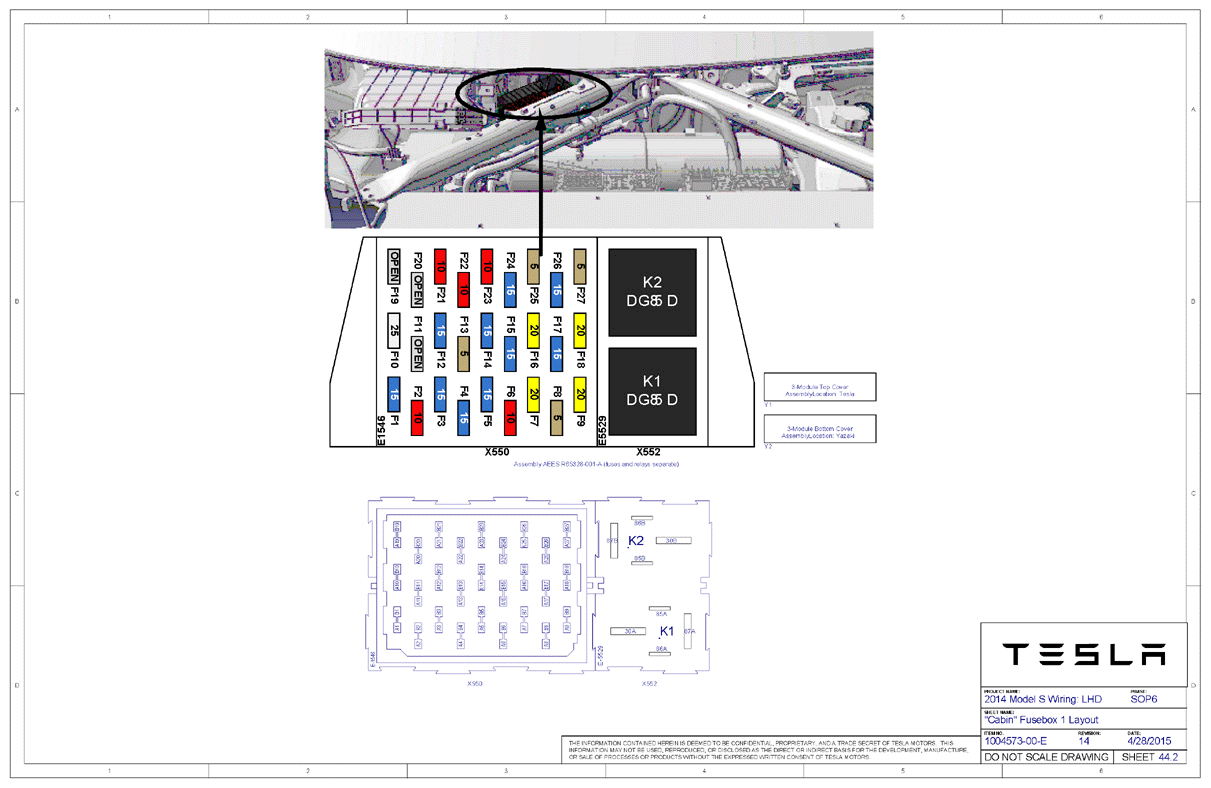

| F1 |
Wiper Park |
ALL |
| F2 |
Headlamp leveling, Vanity Lights |
ALL |
| F3 |
Seat Heater, Second Row Right |
CW01 |
| F4 |
Seat Heater, Second Row Middle |
CW01 |
| F5 |
Seat Heater, First Row Right |
ALL |
| F6 |
Steering Wheel Heater |
|
| F7 |
Electronic Park Brake, Redundant |
ALL |
| F8 |
Steering Column Module |
ALL |
| F9 |
Base Audio System |
ALL |
| F10 |
Panoramic Sunroof |
RFPO |
| F11 |
not used |
|
| F12 |
Seat Heater, Second Row Left |
CW01 |
| F13 |
Cabin HVAC Functions |
ALL |
| F14 |
Seat Heater, First Row Left |
ALL |
| F15 |
not used |
|
| F16 |
Electronic Park Brake, Primary |
ALL |
| F17 |
Coolant Pump 2 |
ALL |
| F18 |
Premium Audio Amplifier |
AU01 |
| F19 |
not used |
|
| F20 |
not used |
|
| F21 |
Park Assist |
PK01 |
| F22 |
Thermal System Controls |
ALL |
| F23 |
not used |
|
| F24 |
Coolant Pump 3 |
ALL |
| F25 |
Drive Inverter |
ALL |
| F26 |
Coolant Pump 1 |
ALL |
| F27 |
Restraints Control Module |
ALL |
| K1 |
ACC Power Switch |
ALL |
| K2 |
HVAC Power Switch |
ALL |
