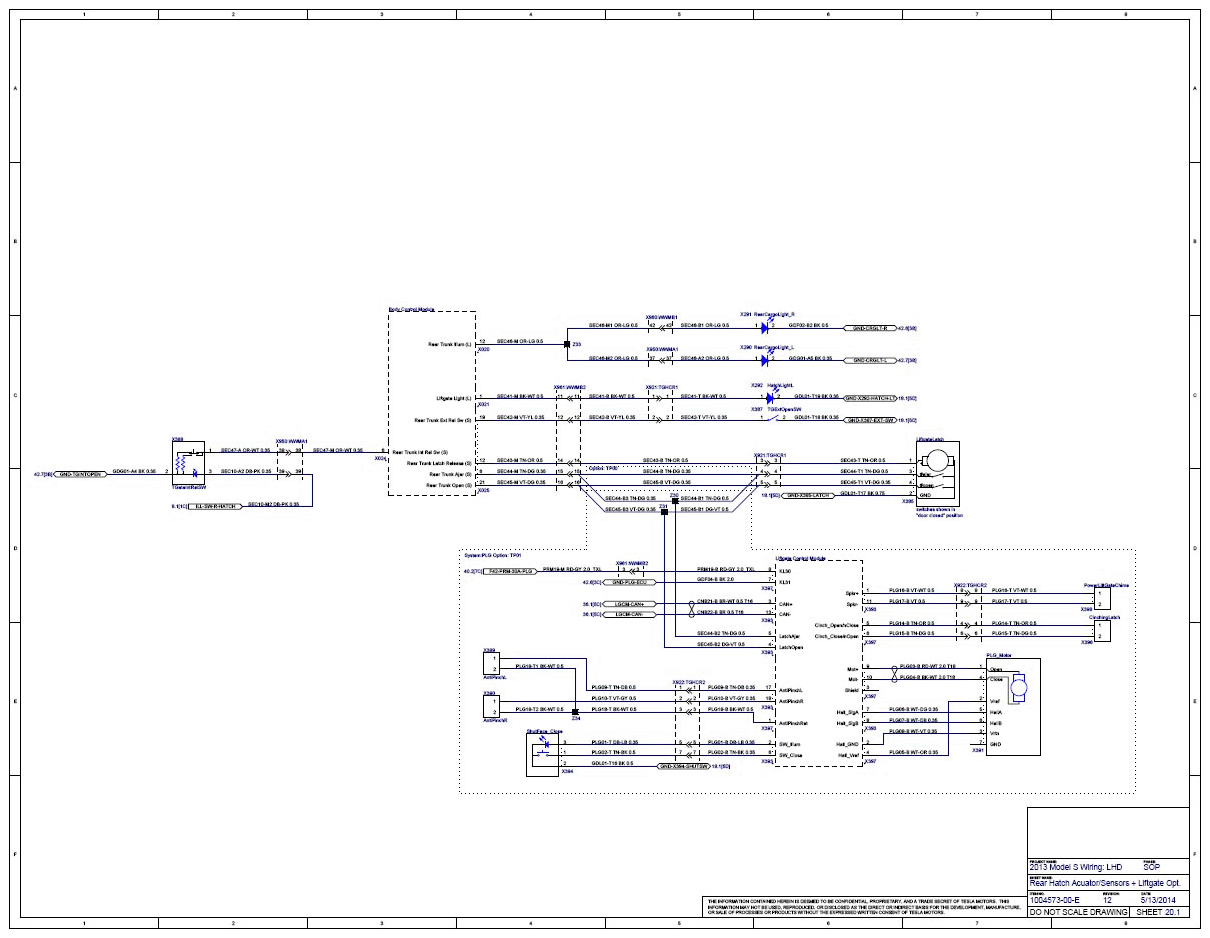

Rear Hatch Actuator/Sensors + Liftgate Opt. - Wiring Diagram [1/6/2014 - 5/19/2014 (without HVAC ionizer)]

G15031917

Courtesy of TESLA, INC.
