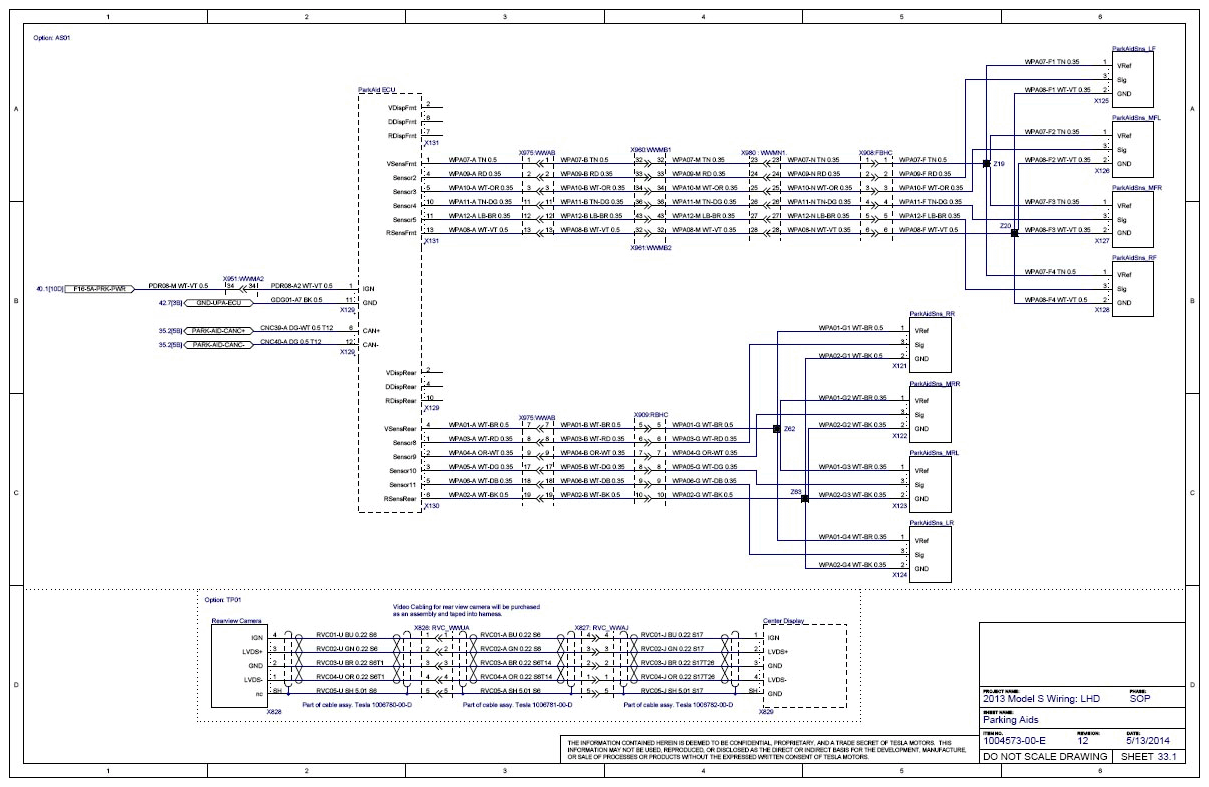

Parking Aids - Wiring Diagram [1/6/2014 - 5/19/2014 (without HVAC ionizer)]

G15031930

Courtesy of TESLA, INC.
