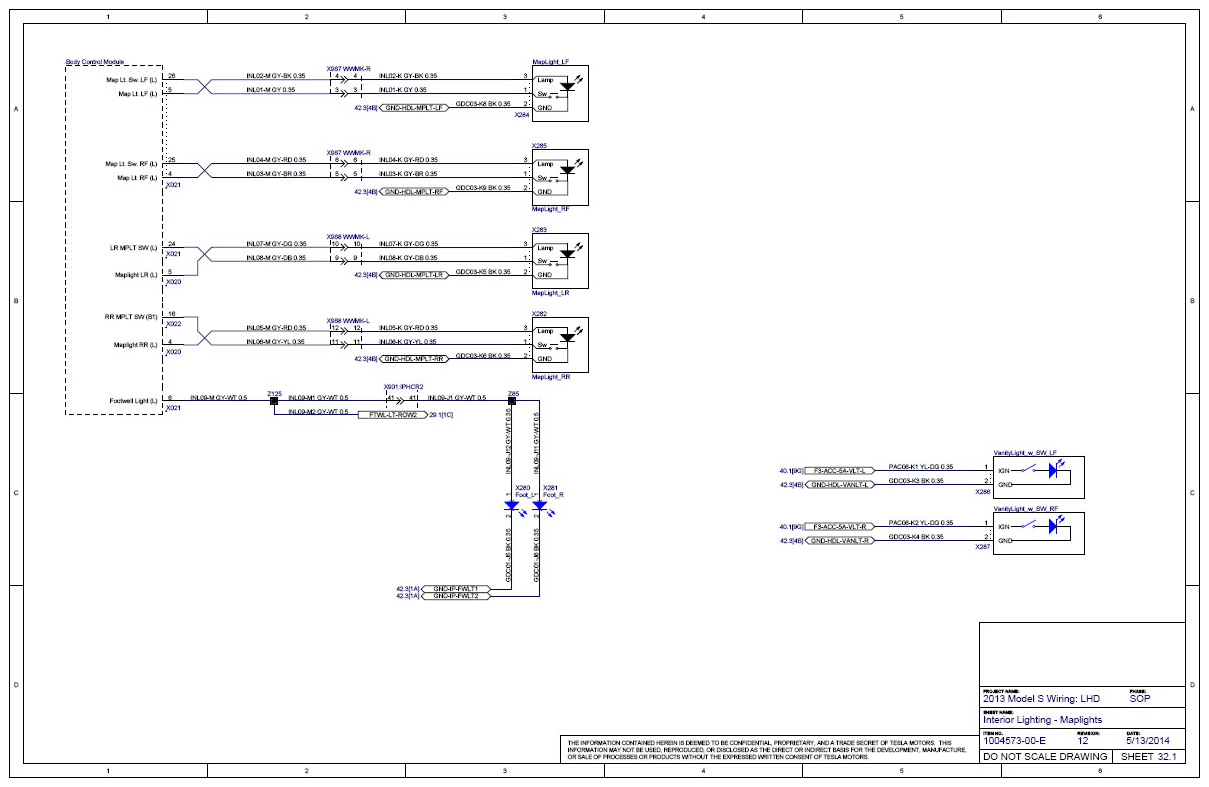

Interior Lighting - Maplights - Wiring Diagram [1/6/2014 - 5/19/2014 (without HVAC ionizer)]

G15031929

Courtesy of TESLA, INC.
