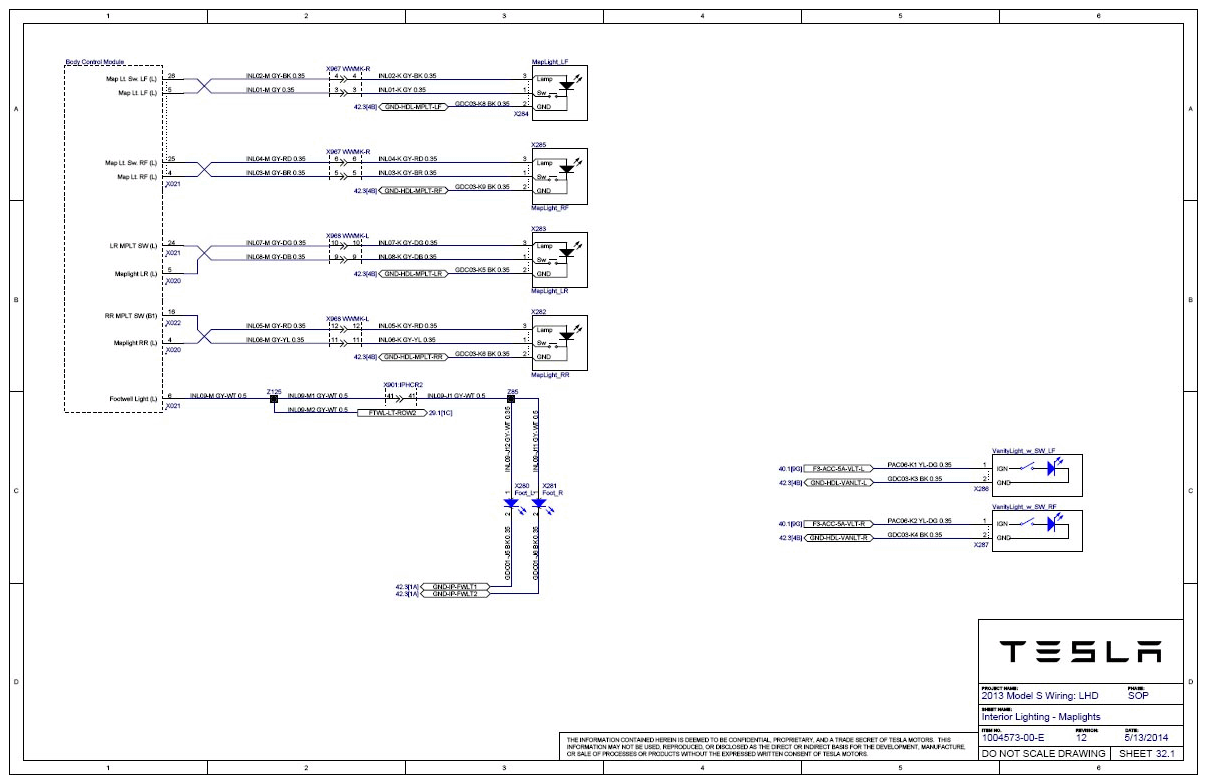

Interior Lighting - Maplights - Wiring Diagram [1/28/2014 - 7/11/2014 (with HVAC ionizer)]

G15031978

Courtesy of TESLA, INC.
