Striker - Door - Front - LH - Remove And Replace: Removal

  1. Open door.

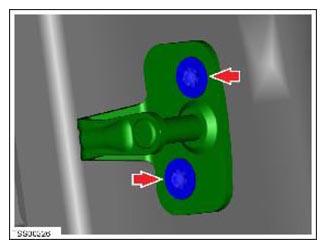

  2. Remove countersunk screws (x2) securing striker plate to 'B' pillar (torque 22 N.m/16.22 ft-lbs.).
    NOTE: Note installed position of components before removal.
    G14975065Courtesy of TESLA, INC.
  3. Remove door striker.
