Pinch Sensor - Liftgate - LH - Remove and Replace: Removal

  1. Remove the liftgate upper finisher. See FINISHER - LIFTGATE - REAR WINDOW - UPPER - REMOVE AND REPLACE .
  2. Remove the liftgate LH and RH side finisher. See FINISHER - LIFTGATE - REAR WINDOW - SIDE - LH - REMOVE AND REPLACE .
  3. Remove the liftgate lower finisher. See FINISHER - LIFTGATE - REAR WINDOW - LOWER - REMOVE AND REPLACE .
  4. Disconnect the LH liftgate pinch sensor from the electrical harness connector.

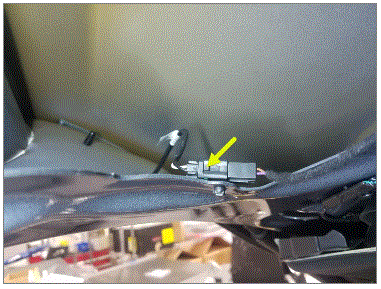

    G00647772Courtesy of TESLA, INC.
  5. Release the clips (x6) that attach the LH liftgate pinch sensor to the liftgate.

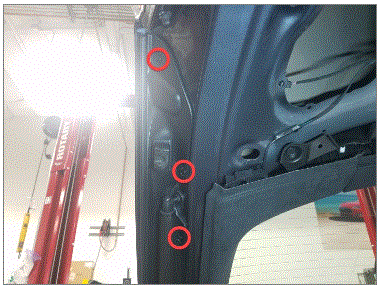

    G00647773Courtesy of TESLA, INC.

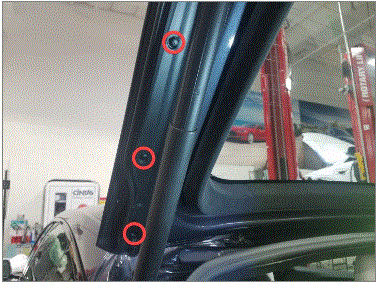

    G00647774Courtesy of TESLA, INC.
  6. Remove the LH liftgate pinch sensor harness grommet from the liftgate, and then move the LH liftgate pinch sensor harness out of the liftgate.

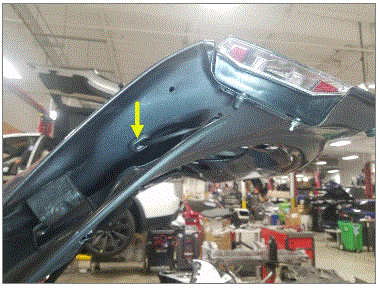

    G00647775Courtesy of TESLA, INC.
  7. Remove the LH liftgate pinch sensor from the liftgate.

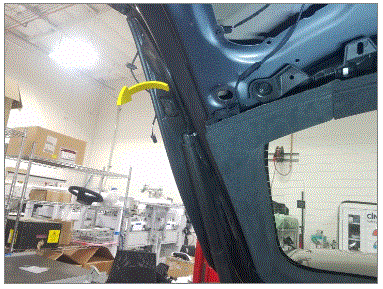

    G00647776Courtesy of TESLA, INC.
