2nd Generation vehicles: Removal

  1. Remove the underhood storage unit Underhood Storage Unit (Remove And Install) .

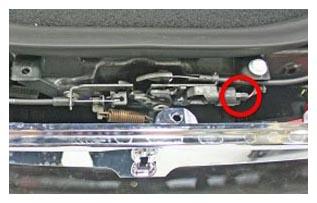

  2. Disconnect the harness from the LH side of the latch.
    G14975105Courtesy of TESLA, INC.

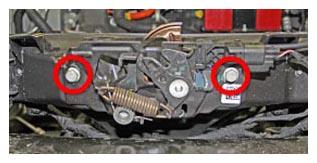

  3. Remove the bolts (x2) that secure the latch to the crossmember (torque 10 N.m).
    NOTE: Image shown with harness connected.
    G14975106Courtesy of TESLA, INC.
  4. Carefully lift the latch assembly and disconnect the hood latch cables (x2).
  5. Remove the latch assembly from the vehicle.
