Latch - Door - Rear - LH - Remove And Replace: Removal

  1. Remove the rear seat cushion frame Frame - Seat Base - 2nd Row Cushion (Remove And Replace) .
  2. Remove the rear sill trim panel Trim - Sill Panel - LH - Rear (Remove And Replace) .

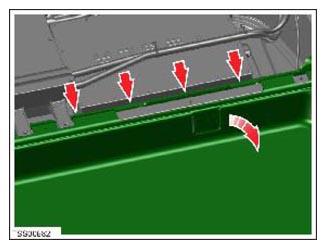

  3. Release the carpet and sound insulation from the rear seat mounting cross member to gain access to the latch manual release lever and cable.
    G14975061Courtesy of TESLA, INC.

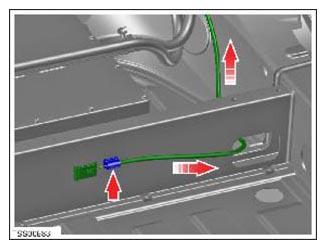

  4. Release the clip from the cross member and feed the cable through the opening.
    G14975062Courtesy of TESLA, INC.

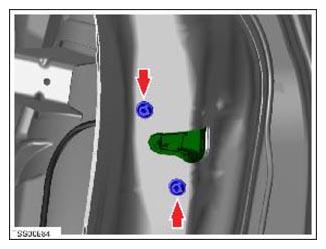

  5. Remove the screws (x2) that secure the latch to the C-Pillar (torque 10 N.m/7.37 ft-lbs.).
    G14975063Courtesy of TESLA, INC.

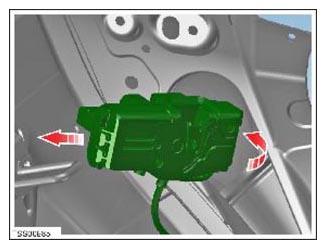

  6. From inside the vehicle, disconnect the latch wiring, release the latch from the C-Pillar, then remove it from the opening.
    G14975064Courtesy of TESLA, INC.
