Latch - Door - Front - LH - Remove And Replace: Removal

  1. Remove front door trim panel Panel - Door Trim - Front - LH (Remove And Install)
  2. Remove screws (x2) securing door latch assembly to reinforcement (torque 10 N.m/7.37 ft-lbs.).

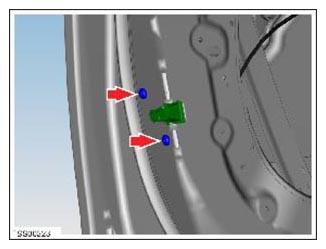

    G14975058Courtesy of TESLA, INC.
  3. Carefully release latch assembly from door outer panel and disconnect latch harness connector.
    CAUTION: Take care not to damage component(s).
  4. Remove latch assembly and release cable from door.

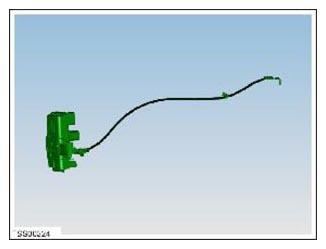

    G14975059Courtesy of TESLA, INC.
  5. Disconnect latch release cable from latch assembly.

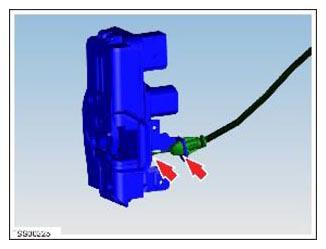

    G14975060Courtesy of TESLA, INC.
  6. Disconnect wiring harness connector.
