Cable - Latch - Hood - LH (Dual Motor) - Remove And Replace: Removal

  1. Remove the underhood storage unit. Refer to Underhood Storage Unit (Remove And Install)
  2. Release the rear cable from the latch assembly.
    NOTE: If performing this procedure on the RH side, release the front cable.
    G14975076Courtesy of TESLA, INC.
  3. Release the clip that secures the cable to the front carrier.
    G14975077Courtesy of TESLA, INC.

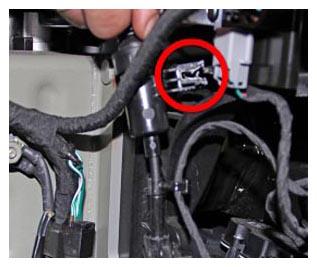

  4. Release the clip that secures the cable spring assembly to the front carrier.
    NOTE: The RH actuator does not have a cable spring assembly.
    G14975078Courtesy of TESLA, INC.
  5. Release the cable from the cable abutment bracket.
  6. Release the cable from the actuator.
  7. Remove the cable from the vehicle.
