Actuator - Cinching - Remove And Replace: Removal

  1. Open liftgate and secure at working height.
  2. Remove the lower rear window liftgate finisher. See Finisher - Liftgate - Rear Window - Lower (Remove And Replace)

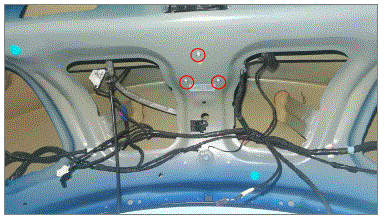

  3. Remove the screws (x3) that attach the cinch motor to the liftgate.

    5 N.m (3.7 lbs-ft)

    G00647766Courtesy of TESLA, INC.
  4. Disconnect the harness connector.

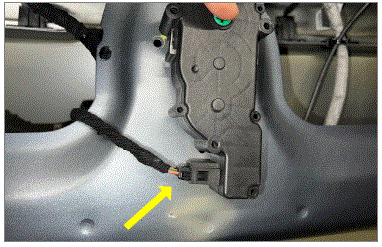

    G00647767Courtesy of TESLA, INC.

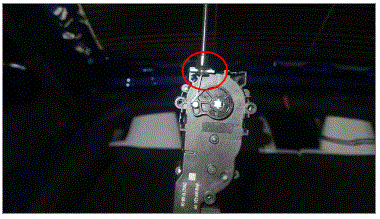

  5. Position cinching motor for access to latch release cable. Release cable from abutment and disconnect inner cable from motor.
    G00647768Courtesy of TESLA, INC.

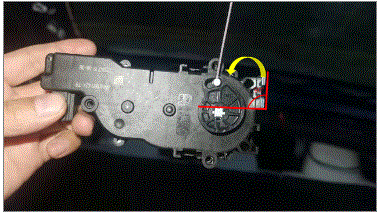

    G00647769Courtesy of TESLA, INC.
