Seal - Outer Belt - Rear Door - LH - Remove And Replace: Removal

  1. Lower the LH rear window fully.

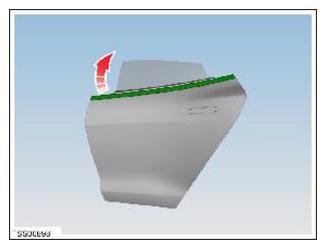

  2. Using a suitable tool release outer belt seal, release leading edge and work rearward.
    CAUTION: Protect paintwork from possible damage during this procedure.
    CAUTION: Take care not to damage component(s).
    G14975398Courtesy of TESLA, INC.

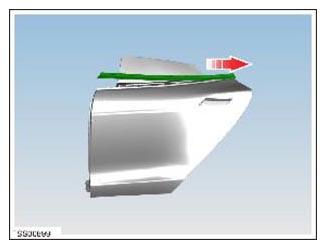

  3. Release hooked end from door skin and remove the seal.
    G14975399Courtesy of TESLA, INC.
