Seal - Inner Belt - Rear Door - LH - Remove And Replace: Removal

  1. Lower the LH rear window.
  2. Remove LH rear door trim panel. See Panel - Door Trim - Rear - LH (Remove and Install) .
  3. Release trim studs (x2) that attach the flap seal to the door.
  4. Carefully ease flap seals clear of the inner belt seal for access.
    CAUTION: Take care not to damage component(s).

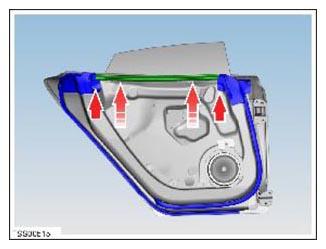

  5. Carefully lift and remove the inner belt seal from the door.
    G14975397Courtesy of TESLA, INC.
