Seal - Door - Front - A Pillar - Margin - LH - Remove And Replace: Removal

  1. Open vehicle door, ensuring good access.

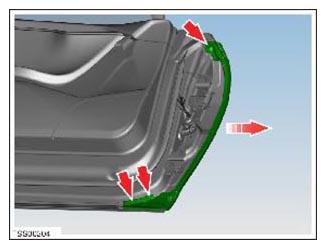

  2. Carefully release clip (x1) securing top of flap seal to door.
    CAUTION: Take care not to damage component(s).
    NOTE: Components have been removed in this graphic to aid clarity.
    CAUTION: Protect exterior paint surfaces during this procedure.
  3. Carefully release clips (x2) securing lower end of flap seal to door.
  4. Release remaining seal to front edge of door.
    G14975381Courtesy of TESLA, INC.

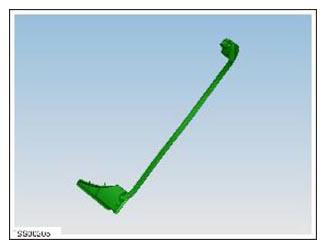

  5. Remove door seal.
    G14975382Courtesy of TESLA, INC.
