Seal - Body - Side - Rear - Secondary - LH - Remove And Replace: Removal

  1. Open the LH front and LH rear doors.

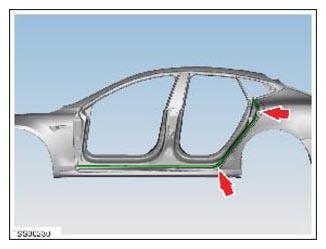

  2. Remove and discard the seal.
    NOTE: Components have been removed in this graphic to aid clarity.
    G14975376Courtesy of TESLA, INC.
