Seal - Body - Side - Rear - Primary - LH - Remove And Replace: Removal

  1. Remove 'B' post upper trim B-Pillar Trim Panel - LH (Remove And Replace)

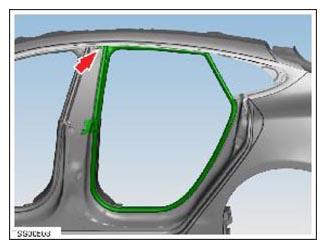

  2. Release clip (x1) securing rear door seal to body.
  3. Carefully release seal from rocker panel and work toward upper section of seal.
  4. Release remaining seal from brightwork.
    G14975379Courtesy of TESLA, INC.

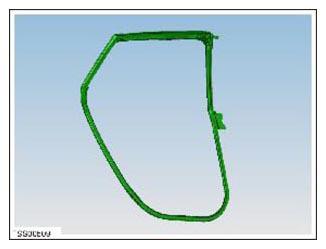

  5. Remove seal.
    G14975380Courtesy of TESLA, INC.
