Cable - Cinching - Remove And Replace: Removal

  1. Remove cinch actuator from liftgate, refer to ACTUATOR - CINCHING (REMOVE AND REPLACE)

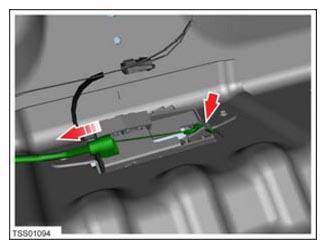

  2. Disconnect cinch cable from latch assembly.
    G14975088Courtesy of TESLA, INC.

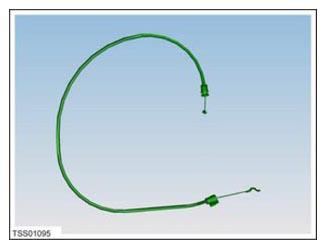

  3. Remove cinch cable from liftgate.
    G14975089Courtesy of TESLA, INC.
