Antenna - Satellite Radio - Roof-Mounted - Remove And Replace: Installation

Remove and discard the mounting clips from the electrical harness on the new antenna.
Remove all adhesive residue from the antenna mounting surface with alcohol wipes. Allow the alcohol to dry fully before continuing.

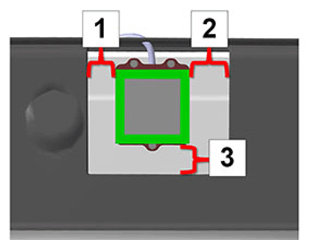

Peel the backing material from the bottom of the antenna and affix the antenna to the mounting surface in the location shown.

Courtesy of TESLA, INC.

Test-fit the satellite antenna electrical harness.
Position material to collect metal shavings below the LH rear roof crossmember.

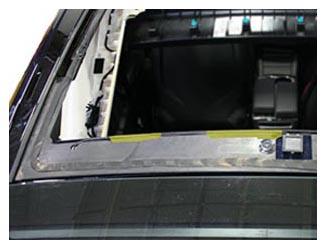

Drill a hole with a diameter of at least 15 mm (5/8 in) through the panoramic roof frame and roof crossmember.

Courtesy of TESLA, INC.
Deburr the hole.
Vacuum all metal shavings.
Route the new satellite antenna harness in the panoramic roof frame channel and through the hole.

Courtesy of TESLA, INC.
Connect the antenna connector to the electrical harness at the LH C-post upper.
Tip: Wrap the electrical connector with foam tape or felt tape to prevent rattles when the vehicle is reassembled.
Secure the satellite antenna harness to the panoramic roof frame with electrical harness tape or similar adhesive tape.
NOTE: The harness and hole are not exposed to the environment once the panoramic roof fixed glass is installed. No special water-proofing measures are required.

Courtesy of TESLA, INC.
Reinstall the components that were removed for access.
