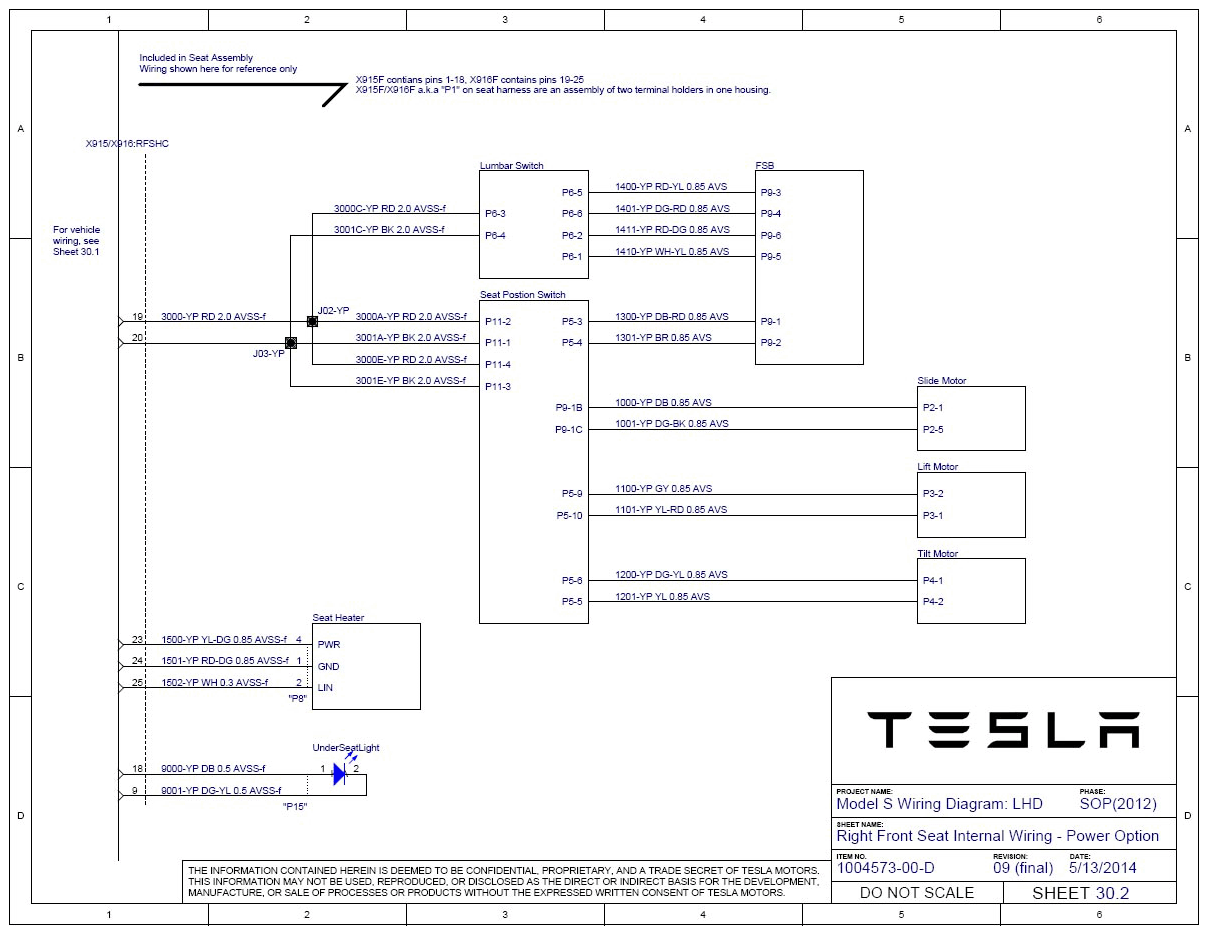

Right Front Seat Internal Wiring - Power Option - Wiring Diagram [ - 5/31/2013]

G15031810

Courtesy of TESLA, INC.
