Parking Aids, ECU Interface + Front Sensors - Wiring Diagram [ - 5/31/2013]

G15031815Courtesy of TESLA, INC.

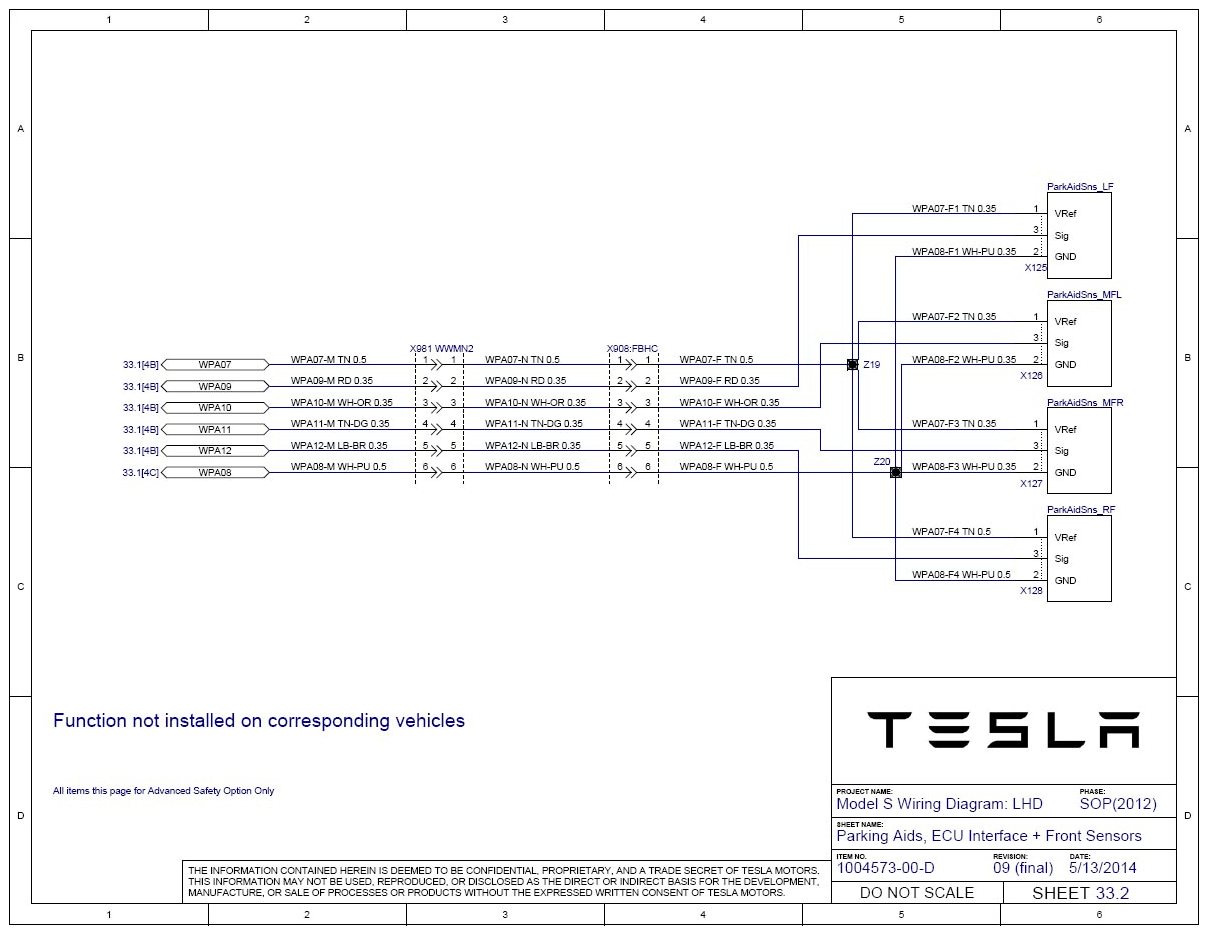

G15031816Courtesy of TESLA, INC.
