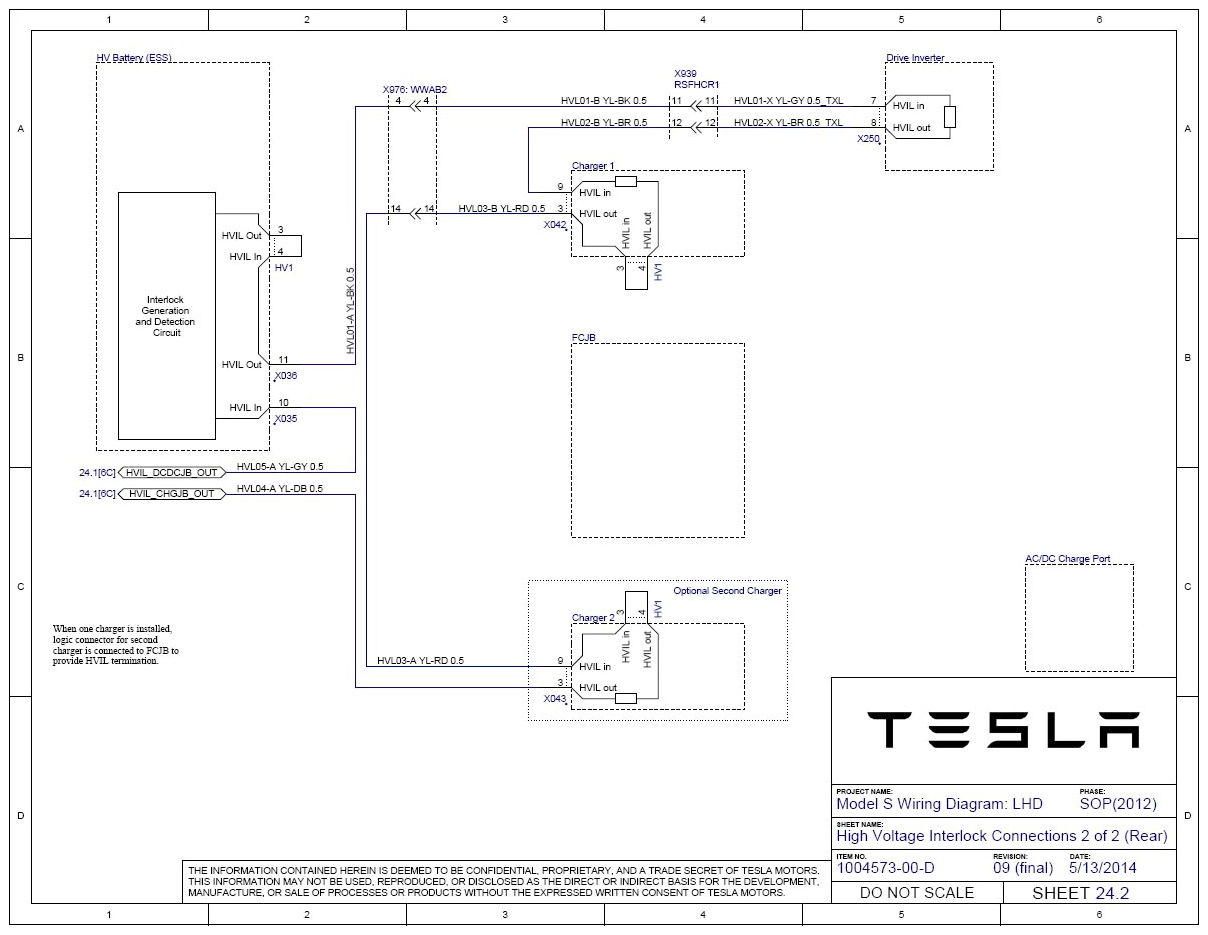

High Voltage Interlock Connections 2 Of 2 (Rear) - Wiring Diagram [ - 5/31/2013]

G15031794

Courtesy of TESLA, INC.
