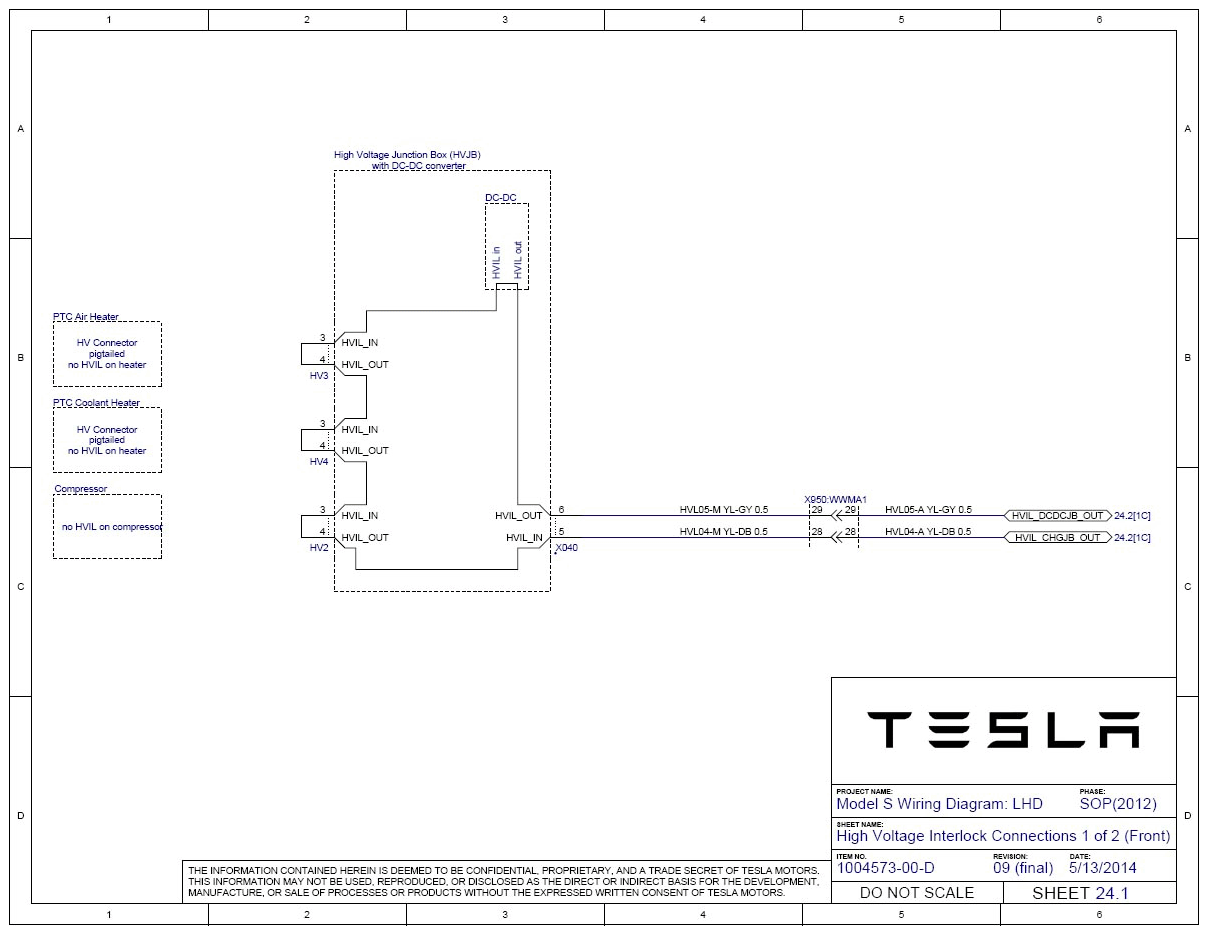

High Voltage Interlock Connections 1 Of 2 (Front) - Wiring Diagram [ - 5/31/2013]

G15031793

Courtesy of TESLA, INC.
