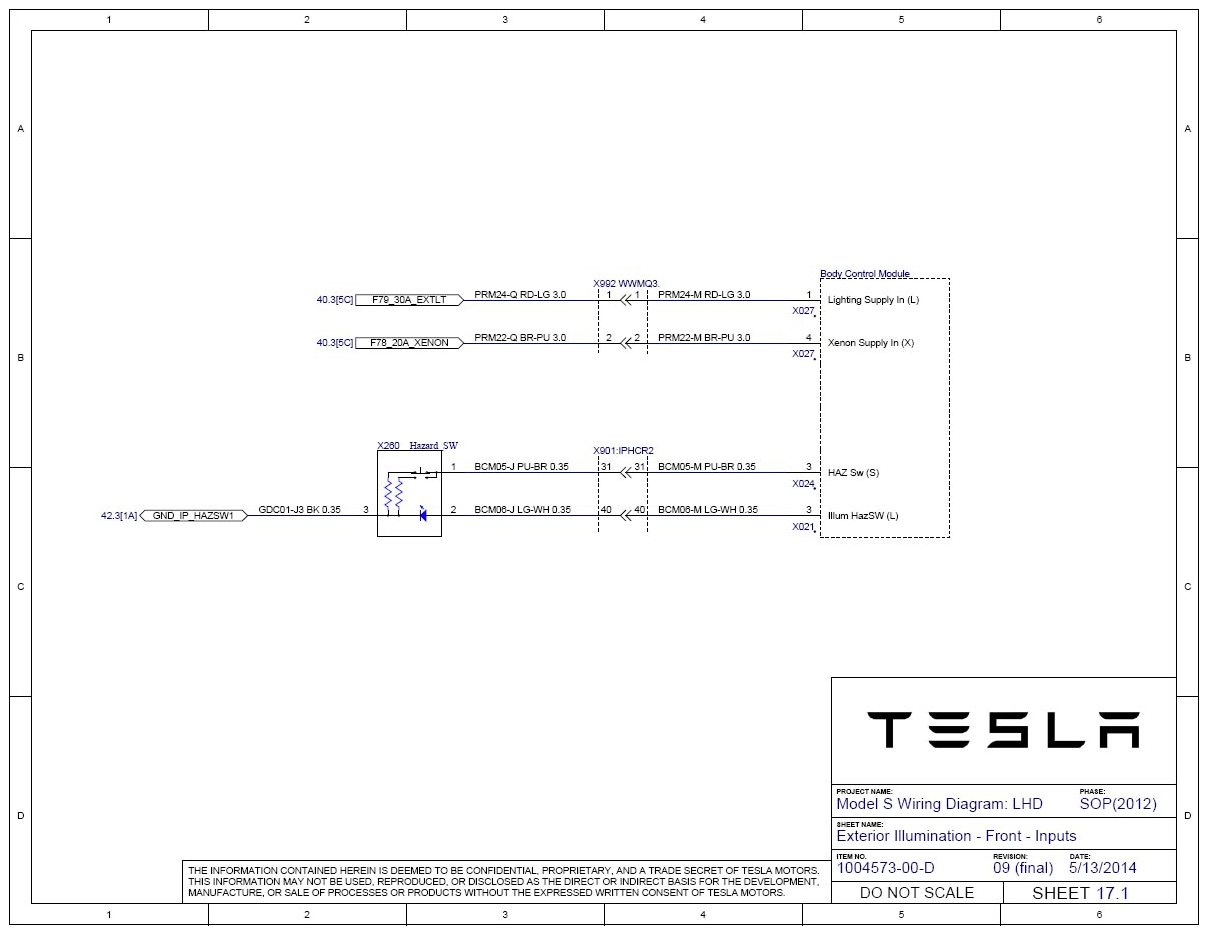

Exterior Illumination - Front - Inputs - Wiring Diagram [ - 5/31/2013]

G15031775

Courtesy of TESLA, INC.
