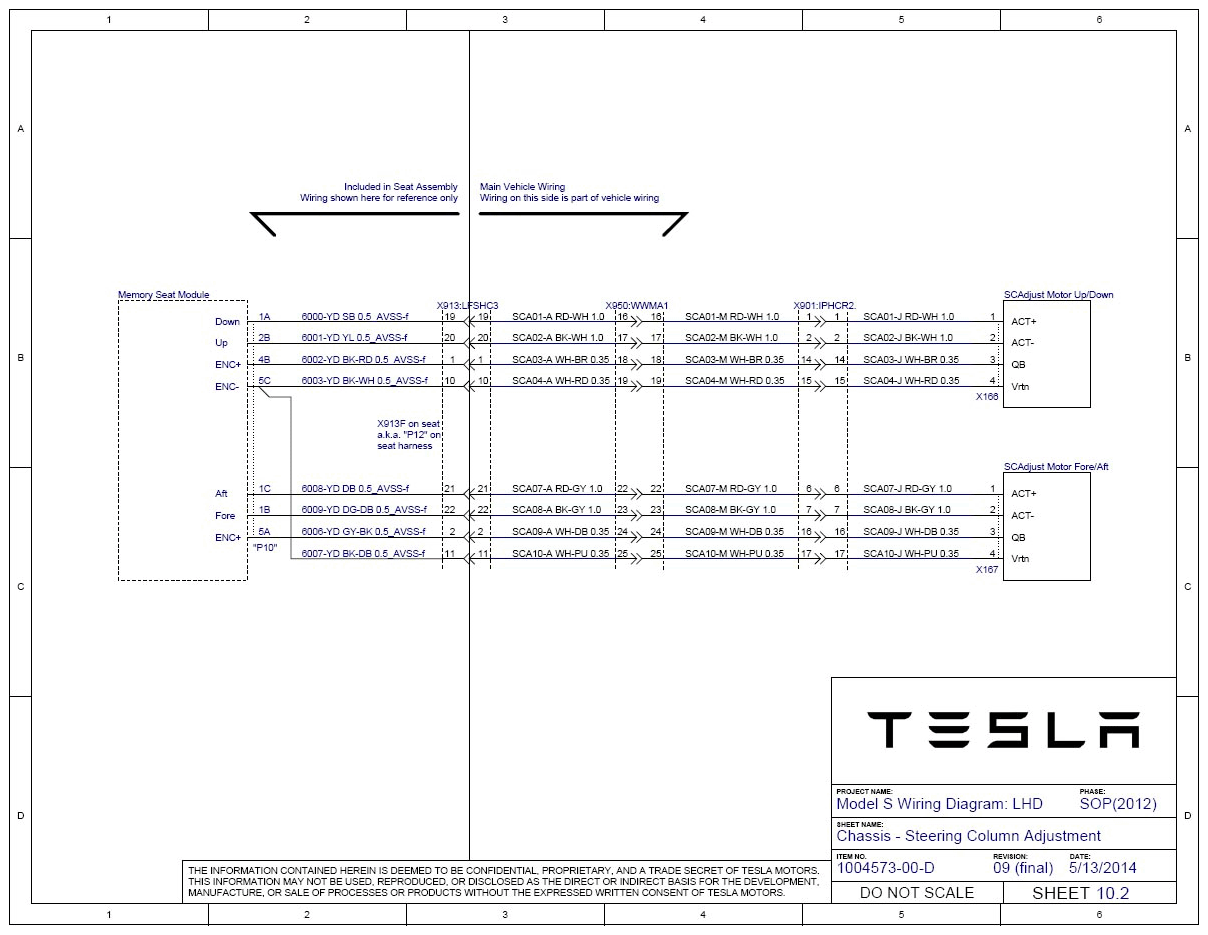

Chassis - Steering Column Adjustment - Wiring Diagram [ - 5/31/2013]

G15031760

Courtesy of TESLA, INC.
