Chassis - Stability and Anti-Lock Braking - Wiring Diagram [ - 5/31/2013]

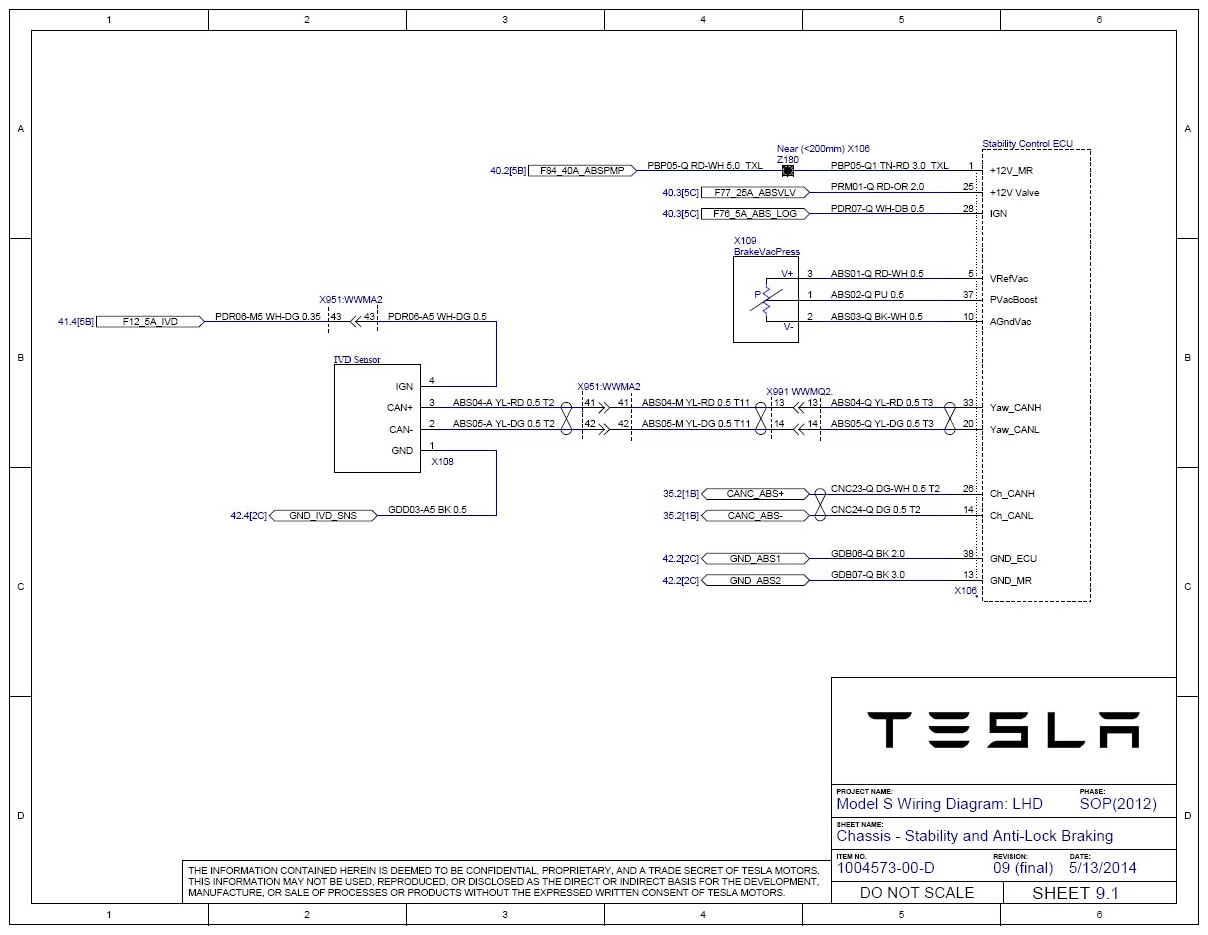

G15031755Courtesy of TESLA, INC.

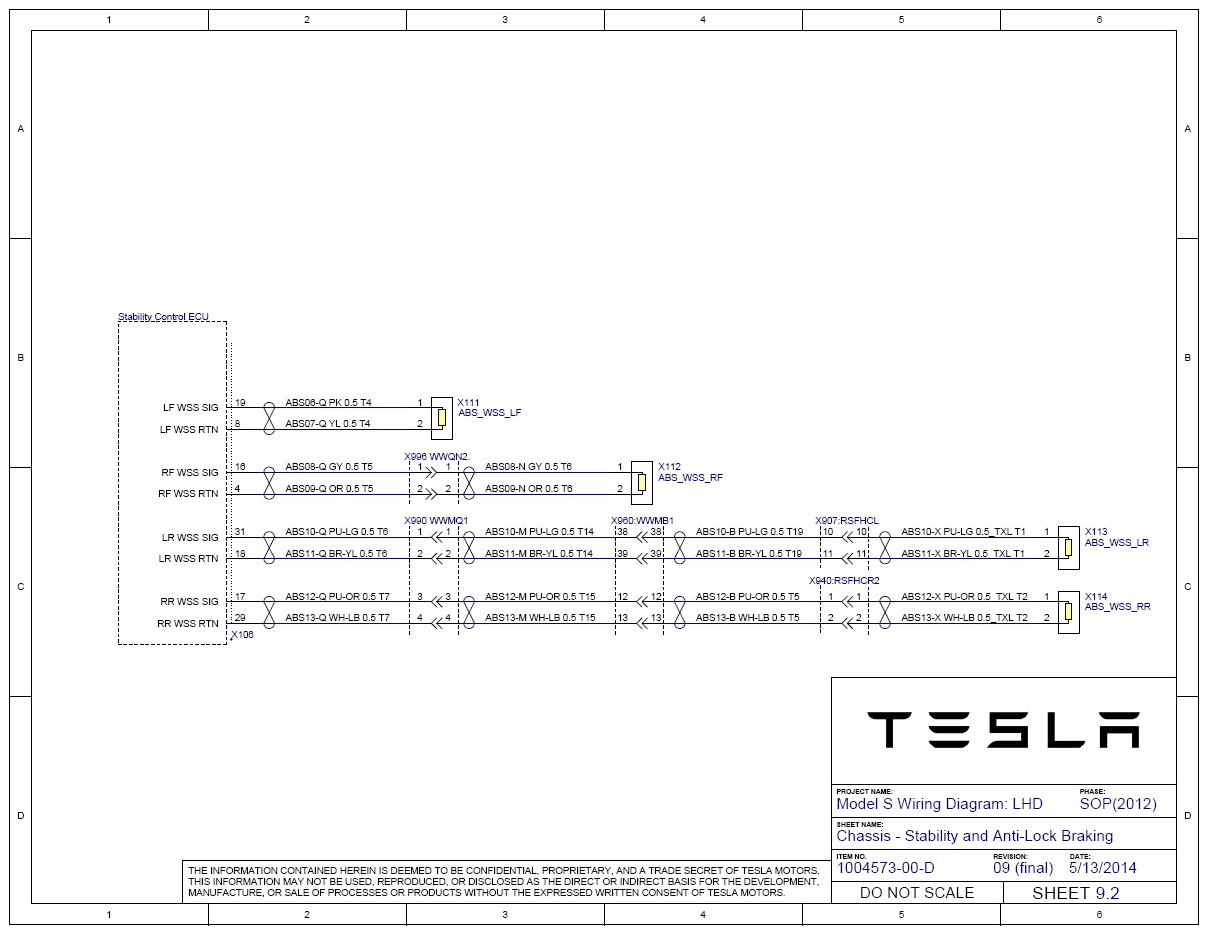

G15031756Courtesy of TESLA, INC.
