Foam And Trim - Cushion - Driver's Seat (2nd Generation) - Remove And Replace: Remove

  1. Remove the driver's seat assembly. See Seat Assembly - 1st Row - LH - Remove and Install .
  2. Protect the front and side seat trims with fender cover or protective tape.

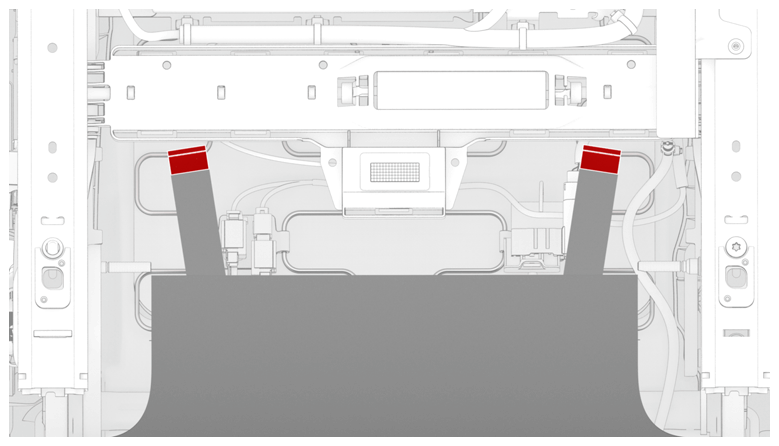

  3. Release the j-hooks that attach the rear toe kick to the underside of the driver's seat assembly.
    G14976832Courtesy of TESLA, INC.

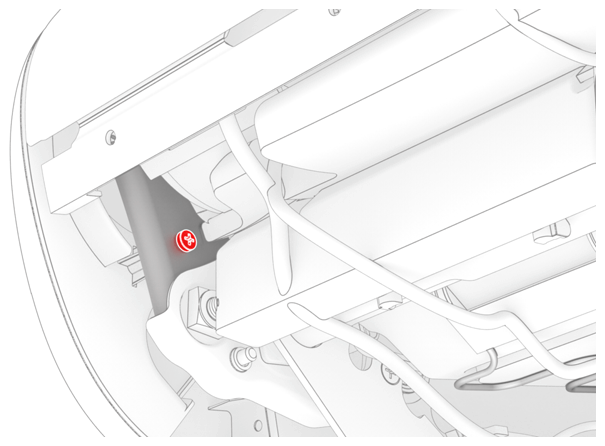

  4. Lift the rear lower panel, and then remove the screw that attaches the outer seat trim to the driver's seat assembly.
    G14976833Courtesy of TESLA, INC.

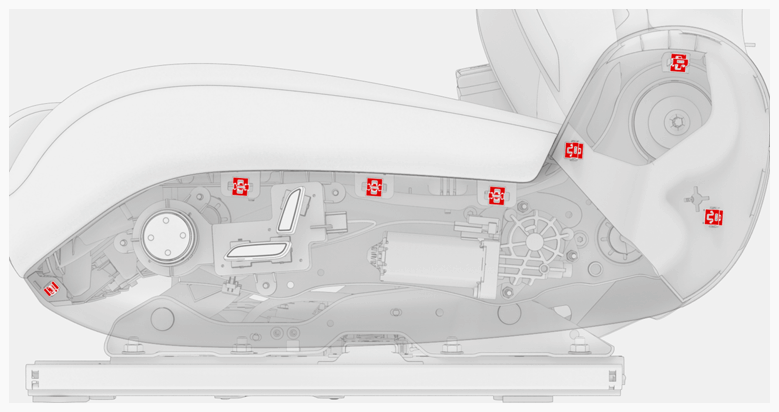

  5. Release the clips that attach the outer seat trim to the driver's seat assembly, and then separate the trim from the seat.
    CAUTION: Take care when releasing the front clips, as they can damage the outer seat trim.
    G14976834Courtesy of TESLA, INC.

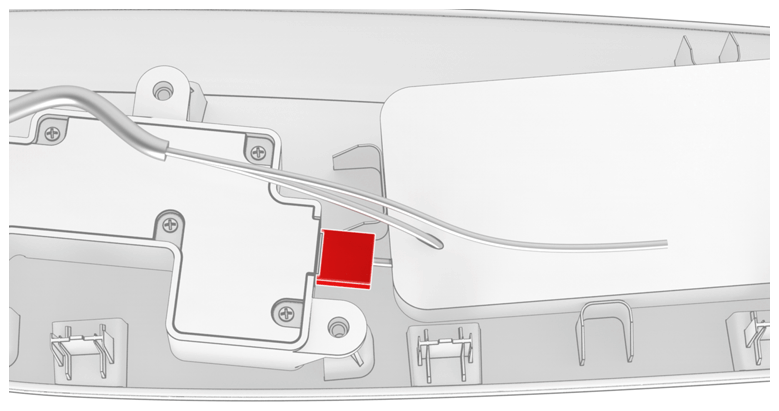

  6. Disconnect the seat switch connector from the outer seat trim, and then remove the outer seat trim.
    G14976835Courtesy of TESLA, INC.

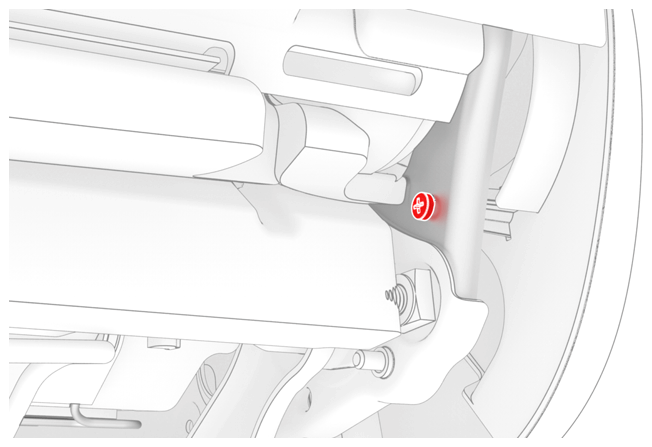

  7. Lift the rear lower panel, and then remove the screw that attaches the inner seat trim to the driver's seat assembly.
    G14976836Courtesy of TESLA, INC.

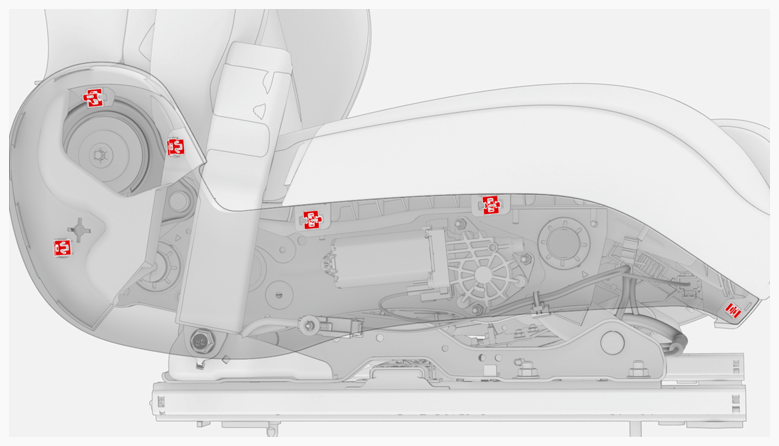

  8. Release the clips that attach the inner seat trim to the driver's seat assembly, and then separate the trim from the seat.
    CAUTION: Take care when releasing the front clips, as they can damage the inner seat trim.
    G14976837Courtesy of TESLA, INC.

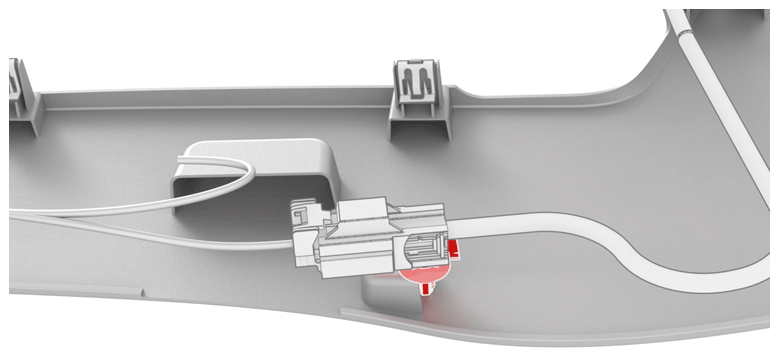

  9. Release the clip that attaches the electrical harness to the inner seat trim, and then remove the inner seat trim.
    G14976838Courtesy of TESLA, INC.

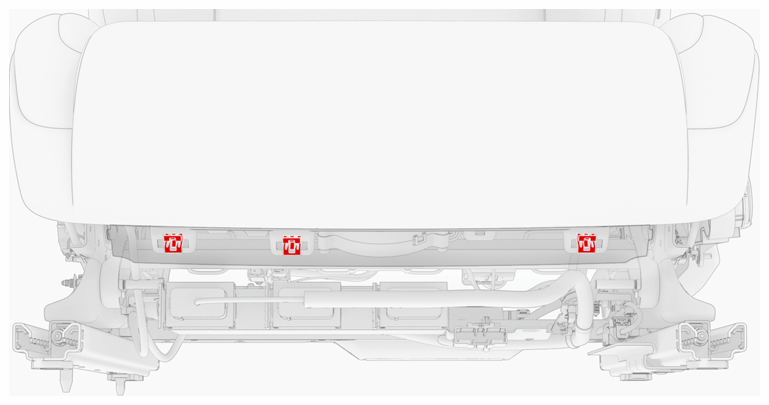

  10. Release the clips that attach the front seat trim to the driver's seat assembly, and then remove the trim from the seat.
    G14976839Courtesy of TESLA, INC.

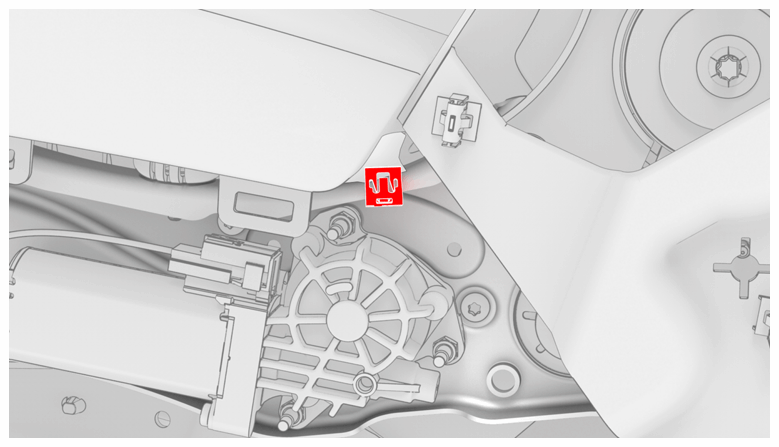

  11. Release the clip that attaches the LH side of the seat cushion trim to the seat assembly.
    G14976840Courtesy of TESLA, INC.

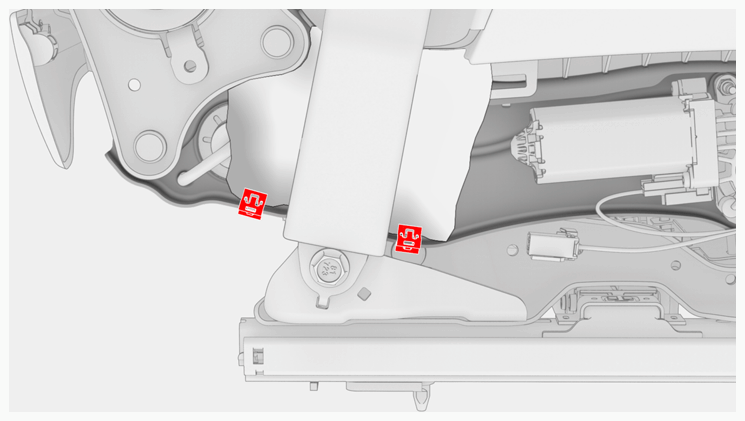

  12. Release the clips that attach the RH side of the seat cushion trim to the seat assembly.
    G14976841Courtesy of TESLA, INC.

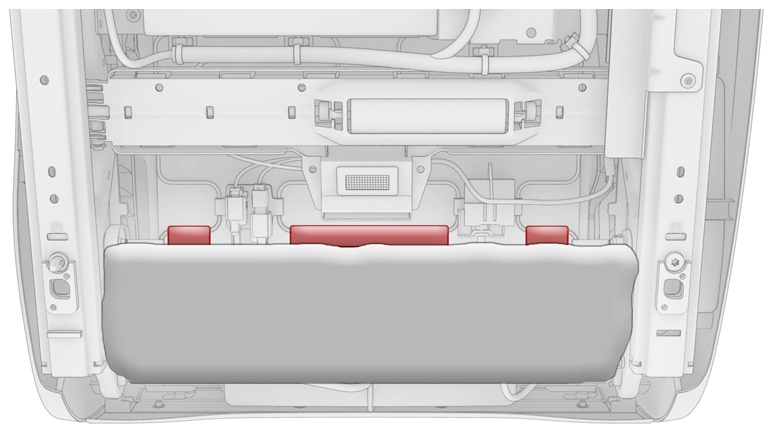

  13. Release the j-hooks that attach the rear portion of the seat cushion trim to the seat assembly.
    G14976842Courtesy of TESLA, INC.

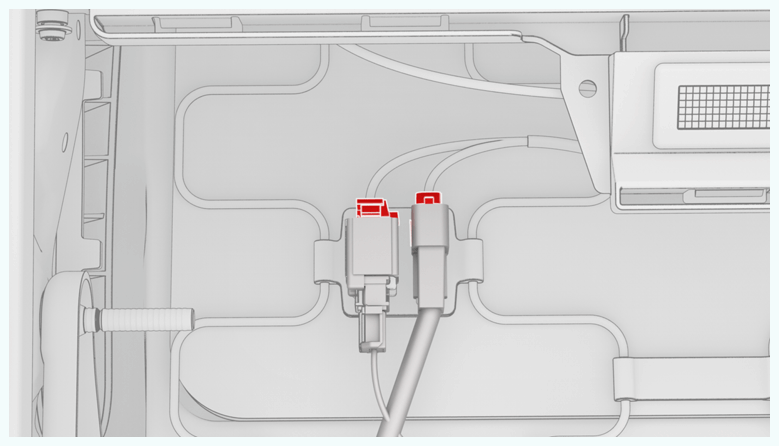

  14. Disconnect the seat cushion connectors.
    G14976843Courtesy of TESLA, INC.

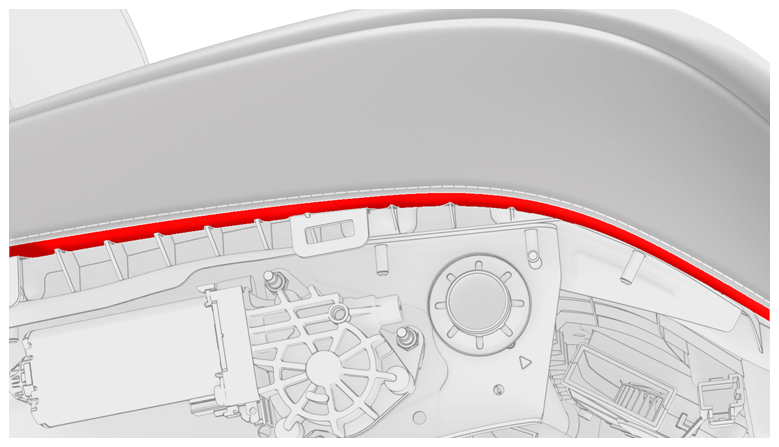

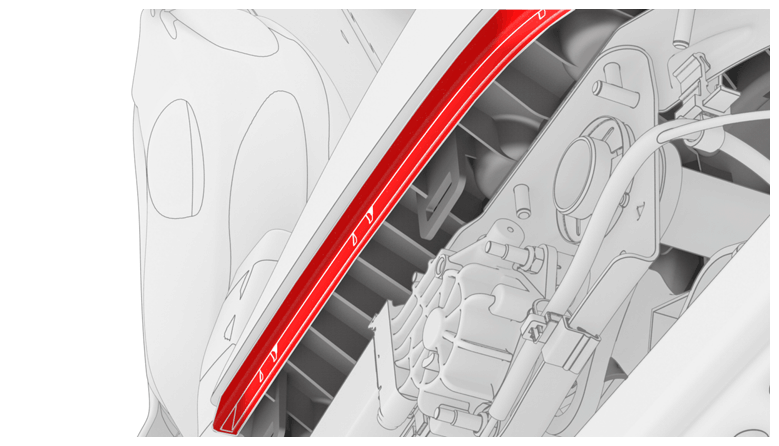

  15. Release the perimeter j-hook that attaches the seat cushion trim to the driver's seat j-hook channel, and then lift the seat cushion trim over the seat cushion foam.
    NOTE: Start from the rear corner of the seat cushion trim, and then work around the perimeter.
    G14976844Courtesy of TESLA, INC.
    G14976845Courtesy of TESLA, INC.

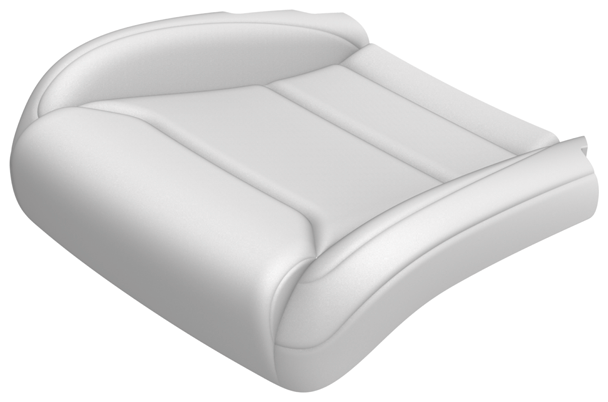

  16. Remove the seat cushion foam and trim from the seat assembly.
    G14976846Courtesy of TESLA, INC.
