Striker - Seat Back - 2nd Row Seat - LH - Remove And Replace: Removal

  1. Remove rear trunk side trim Trim - Rear Trunk - Side - LH (Remove And Replace)
  2. Remove rear sill trim panel Trim - Sill Panel - LH - Rear (Remove And Replace)

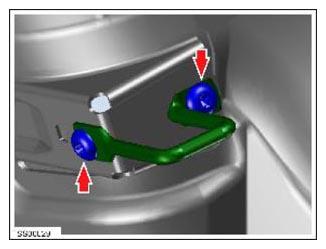

  3. Remove screws (x2) securing striker to body (torque 17 N.m).
    G14976545Courtesy of TESLA, INC.
  4. Remove striker.
