Seat Cushion - Lower - 2nd Row - Executive - LH - Remove And Install: Removal

  1. Remove the 2nd row center console Center Console - 2nd Row - Executive (Remove And Replace) .

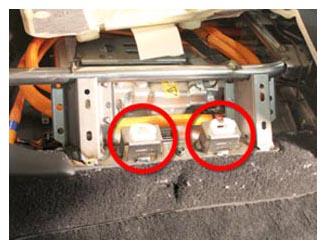

  2. Use both hands to firmly pull up on the front of the cushion to release the 2 clips that secure it to the frame. Do not fully remove the cushion at this time.
    G14976508Courtesy of TESLA, INC.

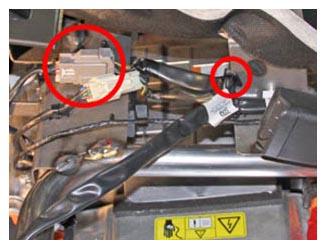

  3. Disconnect the seat heater harness and release the edge clip.
    G14976509Courtesy of TESLA, INC.

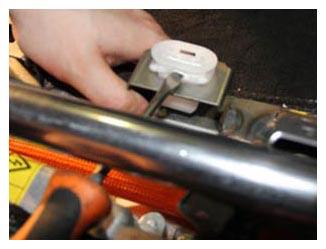

  4. Remove and discard the 2 grommets.
    NOTE: After removing the cushion, the grommets are either retained in the frame or on the seat clip.
    CAUTION: Ensure that 2 new grommets are used during reinstallation.

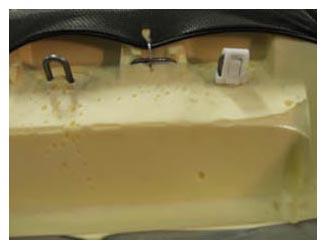

    G14976510Courtesy of TESLA, INC.
