Pivot Sleeve - Seat Back - 2nd Row Seat - LH - Remove And Replace: Removal

  1. Remove Rear LH seat back rest assembly, refer to SEATBACK ASSEMBLY - 2ND ROW - LH (REMOVE AND INSTALL)

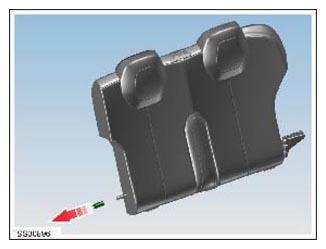

  2. Spread nose of pivot sleeve and remove from LH seat backrest.
    G14976550Courtesy of TESLA, INC.
