Bolster - Side - Seat - 2nd Row - LH - Remove And Replace: Removal

WARNING: The retaining clips may become dislodged when performing this procedure. Wear eye protection to avoid personal injury.
  1. Fully open the LH rear door.
  2. Release the LH rear seat back rest lock and push the rear seat back rest flat for access.
  3. Insert a wedge tool behind the bolster to provide outward pressure.
    G14976542Courtesy of TESLA, INC.
  4. Use a long screwdriver or long pliers to disengage the upper grommet.
  5. Release the seat side bolster from the grommet.
    CAUTION: If the bolster cannot be removed easily, do not force it. This might bend the bolster structure, permanently damaging the bolster.

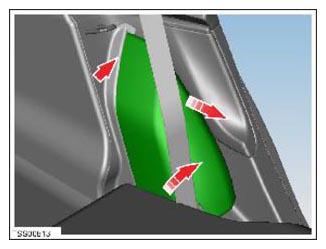

    G14976543Courtesy of TESLA, INC.
  6. Repeat steps  4- 5 on the lower grommet.
  7. Remove the seat side bolster.

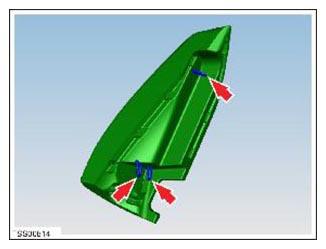

    G14976544Courtesy of TESLA, INC.
