Trim - Sill Panel - LH - Rear - Remove And Replace: Removal
- Remove the 'C' post LH rear trim, refer to TRIM - C-PILLAR - REAR - LH (REMOVE AND REPLACE) .
- Remove the 'C' post LH upper trim, refer to TRIM - C-PILLAR - UPPER - LH (REMOVE AND REPLACE) .
- Fold the 2nd row seat backrests all the way forward.
- Remove the LH rear seat side bolster Bolster - Side - Seat - 2nd Row - LH (Remove And Replace) .
- Release the clips that secure the 'C' post middle trim.
- Use a trim tool to remove the 'C' post middle trim.CAUTION: Take care not to damage component(s).NOTE: Components have been removed in this graphic to aid clarity.
- Release the 'C' post lower trim panel by releasing the trim clips, starting from the 'B' post and working towards the rear of the vehicle:CAUTION: Take care not to damage component(s).

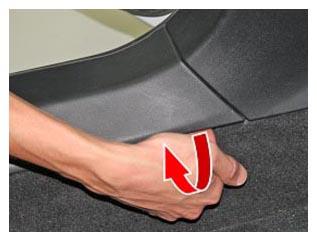

- Pull inboard and lift the front lower edge of the trim panel to release the hook from the 'B' post.

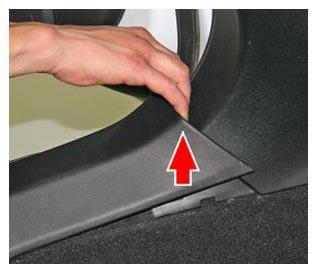

- Pull straight up at the edge closest to the 'B' post to release the clip.

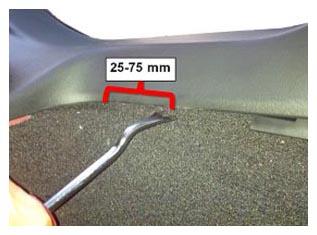

- Insert a trim removal tool as shown, 1-3 in (25-75 mm) from the corner of the sill panel and gently pull upwards to release the clip.

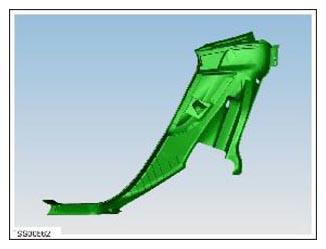

- Remove the 'C' post lower trim panel from the vehicle.
- Pull inboard and lift the front lower edge of the trim panel to release the hook from the 'B' post.
